Tech Tip: Difficulty Programming SMK (TT059)

Publication date: 2014-04-01
Reference number: TT059

TECH TIP: DIFFICULTY PROGRAMMING SMK

TECHNICAL SERVICE BULLETIN

Reference Number(s): TT059, Date of Issue: 04/01/2014

KIA:	2011-2013 Sorento(XM)

SYMPTOM

Difficulty programming SMK because the vehicle won't power up.

REPAIR

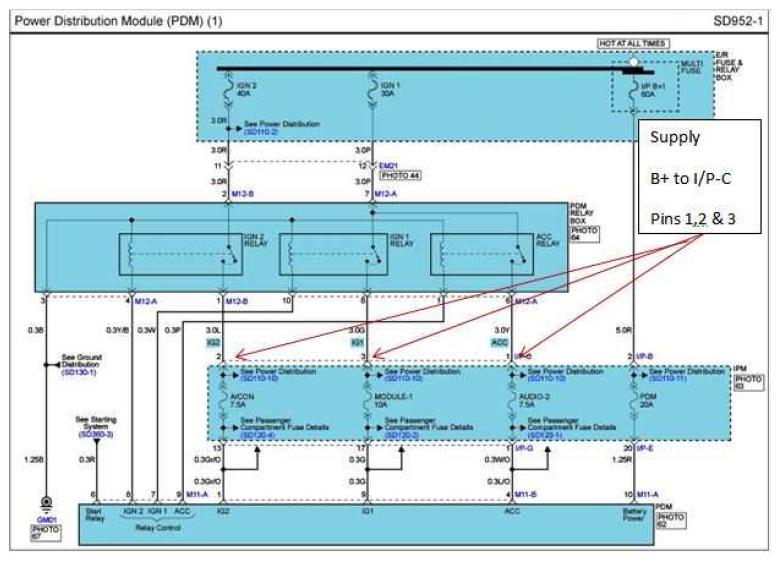

When programming a new Smart Key Module (SMK) and the vehicle will not power up, supply battery voltage to pins 1, 2, and 3 of connector I/P-C at the IPM (refer to image). This will get the vehicle into KOEO status and allow for programming of the SMK and the new FOBs. For further information, follow the programming procedure outlined in TSB GEN 048.

NOTE: Tech Tips are not a substitute for proper diagnosis.
