2011 SORENTO (XM) Variant Coding After SRSCM Replacement (PS161)
Publication date: 2011-01-01Reference number: PS161
2011 SORENTO (XM) VARIANT CODING AFTER SRSCM REPLACEMENT
TECHNICAL SERVICE BULLETIN
Reference Number(s): PS161, Date of Issue:
January 2011
| KIA: | 2011 Sorento (XM) |
| GROUP: | Restraints |
SERVICE INFORMATION

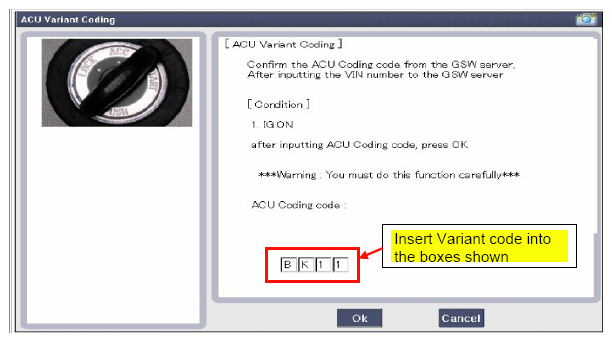

When replacing an SRSCM (Supplemental Restraints System Control Module) on a 2011 Sorento (XM), variant coding is required. Refer to the matrix chart below to determine the variant codes to be used with GDS. Refer to the parts sticker on top of the SRSCM to verify which part number is being installed into the vehicle.
| SRSCM P/N | Engine | Variant code |
|---|---|---|
| 95910 1U000 | 4 cylinder | XM51 |
| 95910 1U000 | 6 Cylinder | XM52 |
| 95910 1U100 | 4 Cylinder | XM53 |
| 95910 1U100 | 6 Cylinder | XM54 |
