Toe adjustment

1. Loosen the nut holding the assist arm cam bolt (A).
2. Adjust rear toe by turning the rear assist arm cam bolt (A) clockwise or counter clockwise. Toe adjustment should be made by turning the right and/or left cam bolt to achieve the proper toe as call for by the alignment equipment.

   Toe

   Total : 0.2°±0.2°

   Individual : 0.1°±0.1°

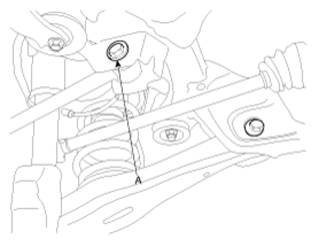

   Fig 1: Identifying Assist Arm Cam Bolt

   Courtesy of KIA MOTORS AMERICA, INC.
3. When completing the toe adjustment, tighten the nut to specified torque.

Tightening torque :

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)
