Engine Control System Diagnosis (1 Of 2) - 2.4L
>>
DTC P0122: Throttle/Pedal Position Sensor/Switch 'A' Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

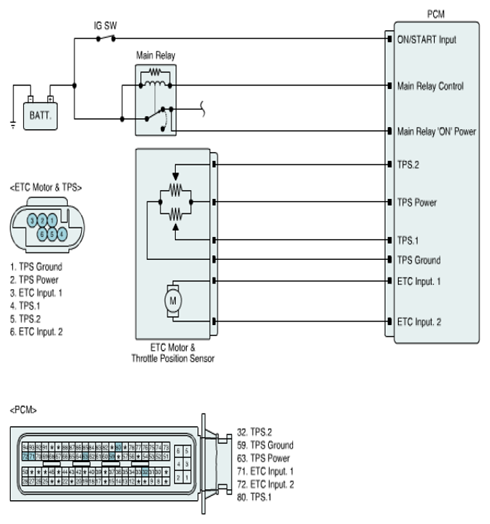

Fig 1: ETC Motor And TPS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
