Variant coding Procedure

On-Line type on GDS
1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

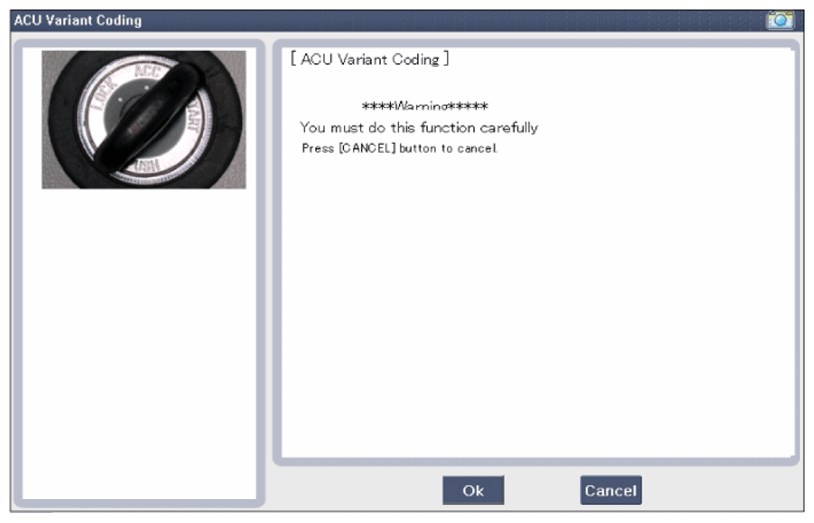

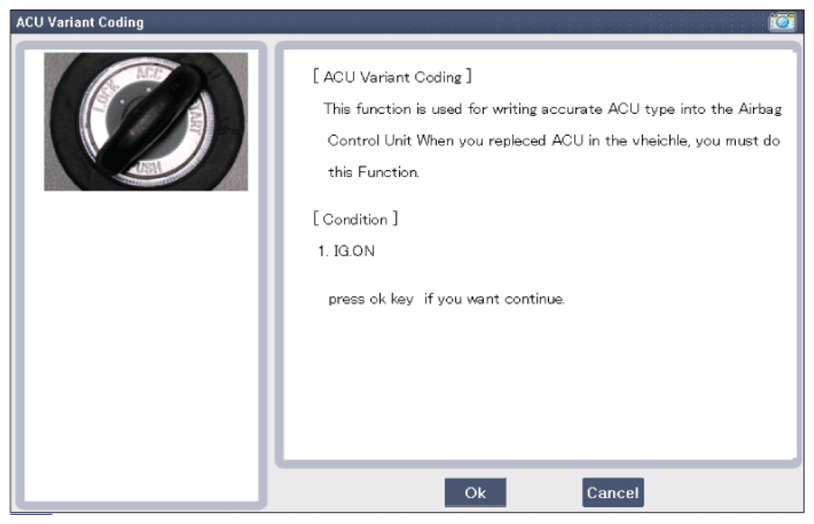

  1. Initial SRSCM Variant Coding screen

    Fig 1: Screen Display - ACU Variant Coding
    Courtesy of KIA MOTORS AMERICA, INC.

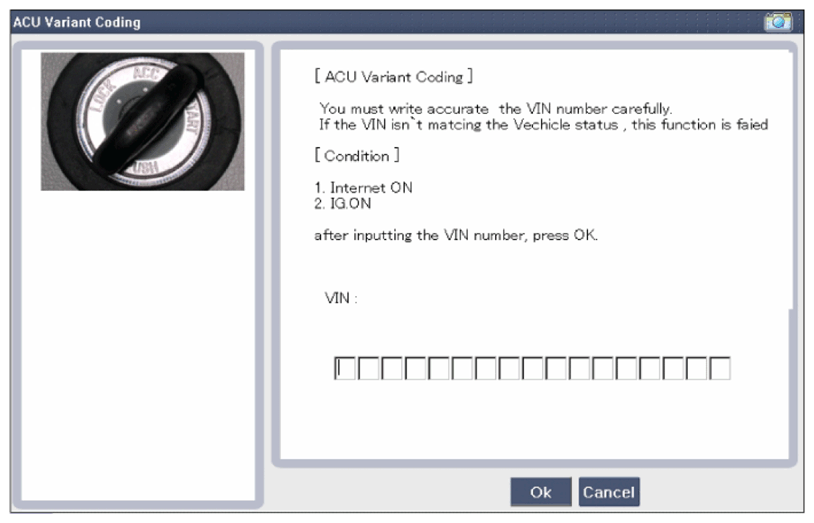

  2. VIN Code entering screen

    Fig 2: Screen Display - VIN Code Entering Screen
    Courtesy of KIA MOTORS AMERICA, INC.

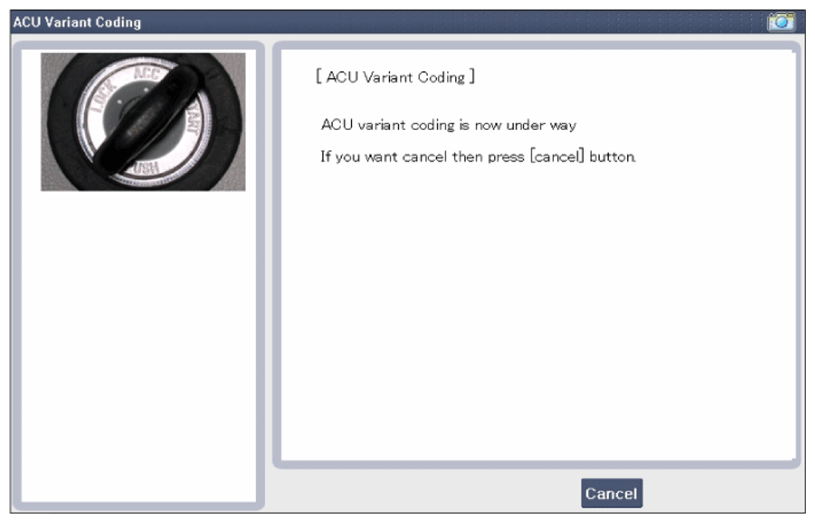

  3. Variant coding's proceeding screen-1

    Fig 3: Screen Display - Variant Coding Proceeding Screen-1
    Courtesy of KIA MOTORS AMERICA, INC.

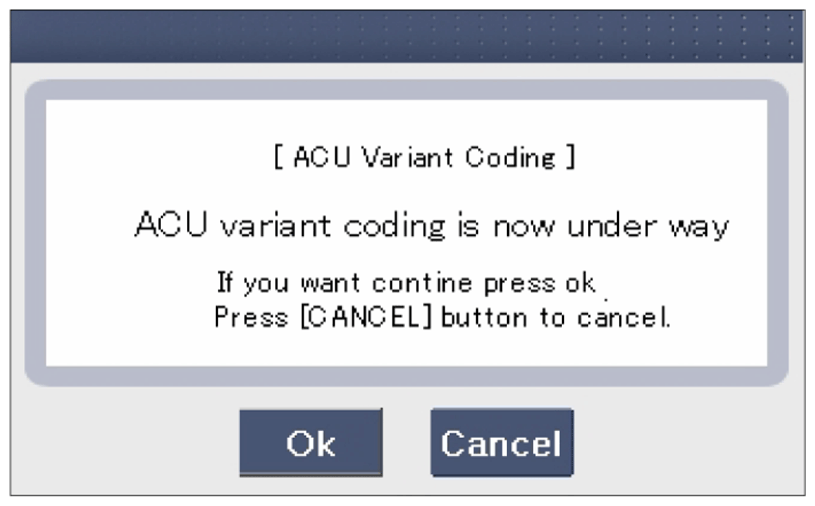

  4. Variant coding's proceeding screen-2

    Fig 4: Screen Display - Variant Coding Proceeding Screen-2
    Courtesy of KIA MOTORS AMERICA, INC.

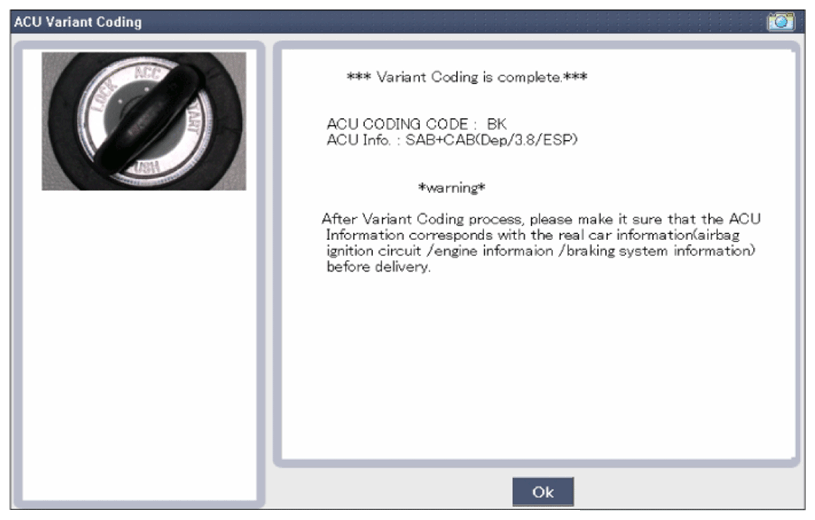

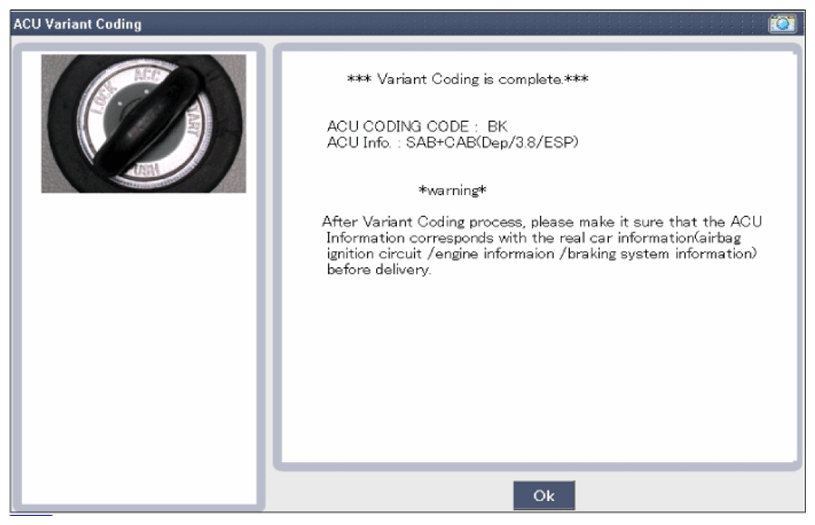

  5. Variant coding is completed

    Fig 5: Screen Display - Variant Coding Is Completed
    Courtesy of KIA MOTORS AMERICA, INC.

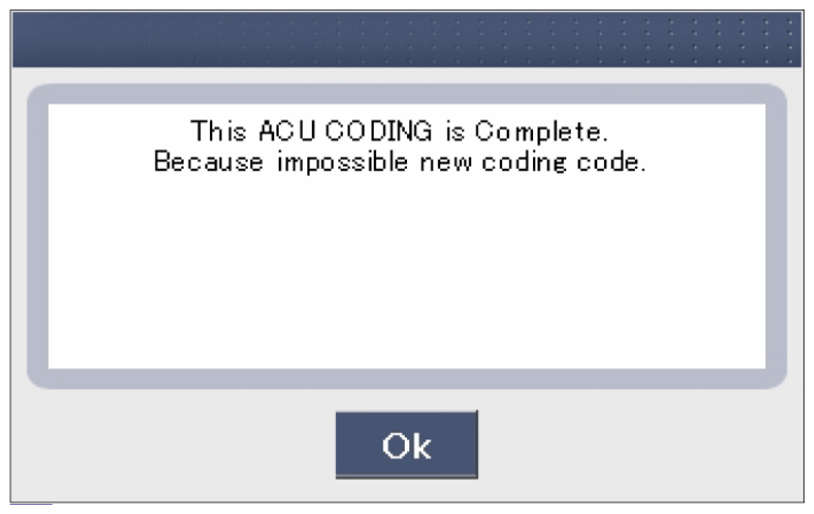

    NOTE: This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding

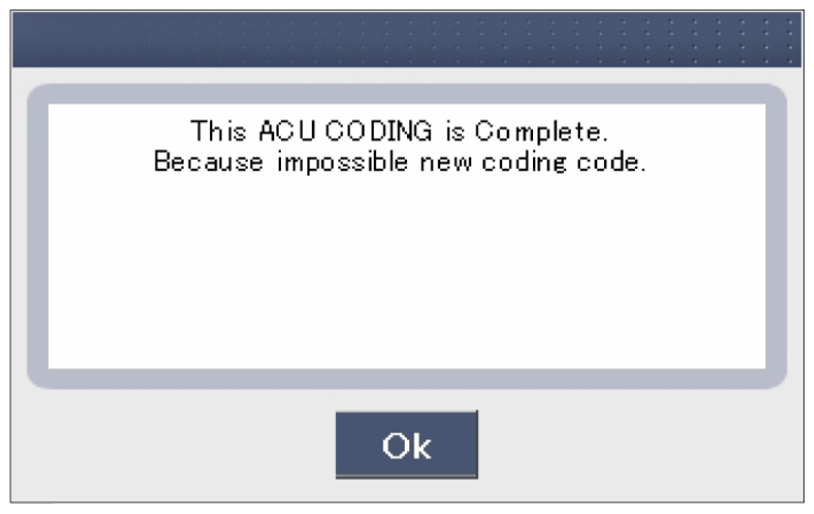

    Fig 6: Screen Display - ACU Coding Complete
    Courtesy of KIA MOTORS AMERICA, INC.

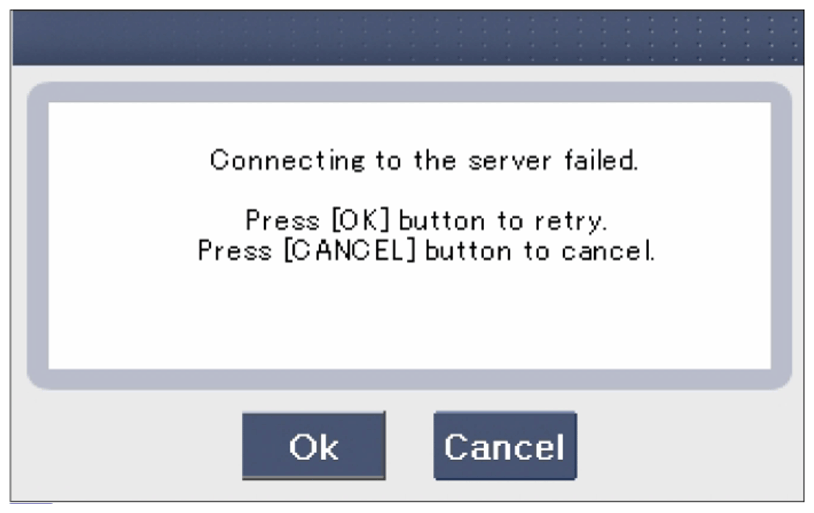

    1. 2) Screen of communication failure

      Fig 7: Screen Display - Screen Of Communication Failure
      Courtesy of KIA MOTORS AMERICA, INC.
Off-line type on GDS (This can be used when not connecting to internet)
1. Initial SRSCM Variant Coding screen

  Fig 8: Screen Display - Initial SRSCM Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.

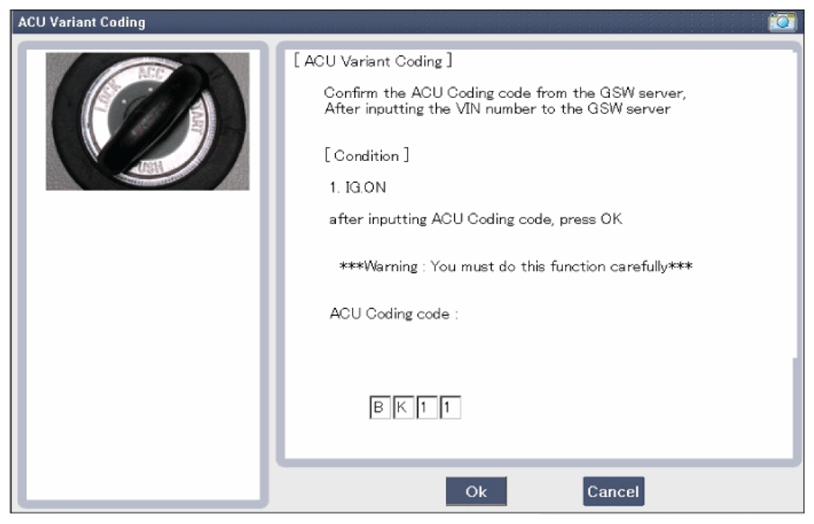

2. SRSCM Coding Code entering screen

  Fig 9: Screen Display - SRSCM Coding Code Entering Screen
  Courtesy of KIA MOTORS AMERICA, INC.

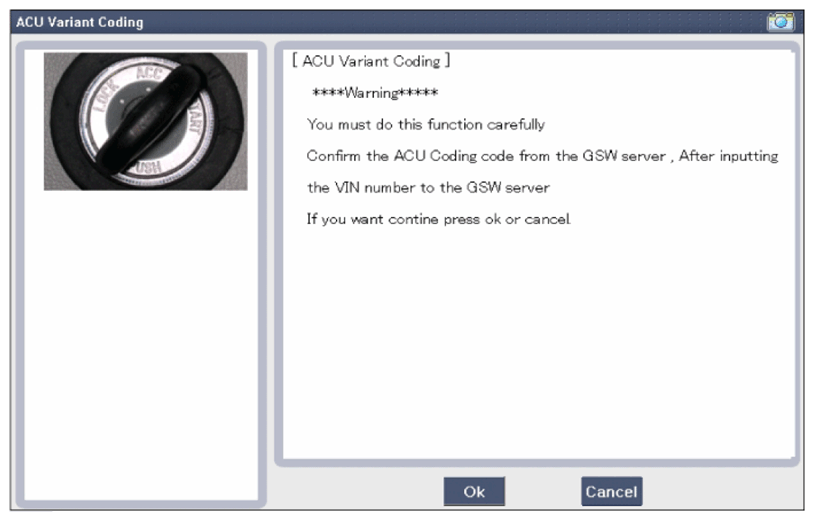

3. Screen of rechecking SRSCM Coding code's entering

  Fig 10: Screen Display - Screen Of Rechecking SRSCM Coding Code Entering
  Courtesy of KIA MOTORS AMERICA, INC.

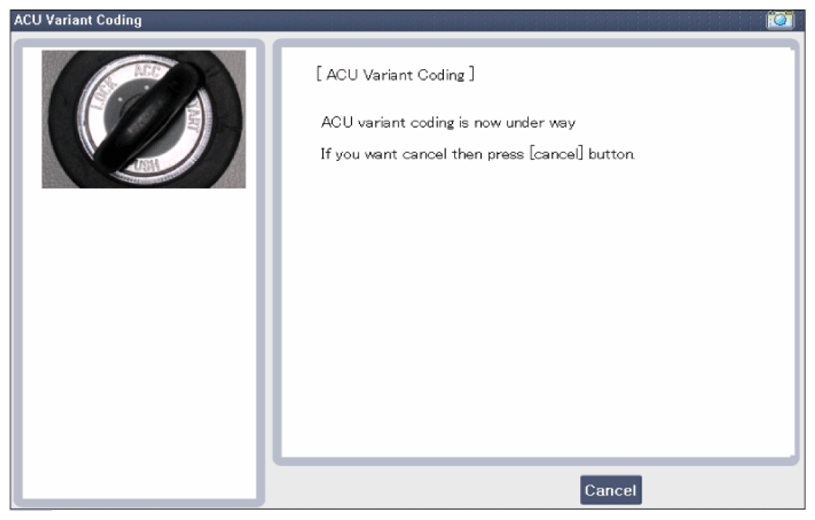

4. Variant coding's proceeding screen-1

  Fig 11: Screen Display - Variant Coding Proceeding Screen-1
  Courtesy of KIA MOTORS AMERICA, INC.

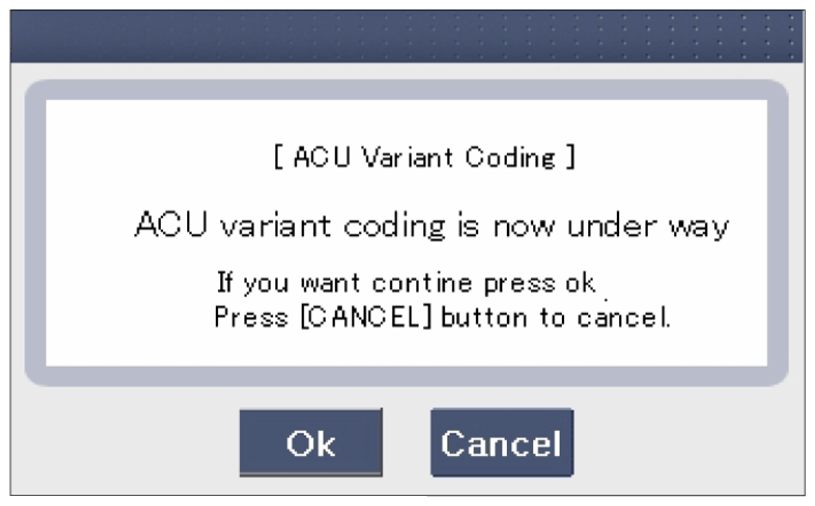

5. Variant coding's proceeding screen-2

  Fig 12: Screen Display - Variant Coding Proceeding Screen-2
  Courtesy of KIA MOTORS AMERICA, INC.
6. Variant coding is completed

  Fig 13: Screen Display - Variant Coding Completed
  Courtesy of KIA MOTORS AMERICA, INC.

  NOTE: This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding

  Fig 14: Screen Display - ACU Coding Complete
  Courtesy of KIA MOTORS AMERICA, INC.
