Diagnostic Circuit Diagram

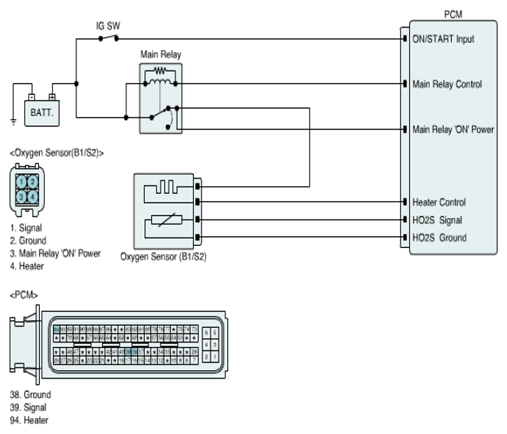

Fig 1: Oxygen Sensor - Circuit Diagram (Bank 1/Sensor 2)
G06520267Courtesy of KIA MOTORS AMERICA, INC.
