Repair Procedures (A4CF2): Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air duct.
  4. Remove the air cleaner assembly. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
  5. Remove the input speed sensor connector (A).

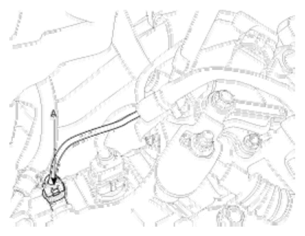

    Fig 1: Identifying Input Speed Sensor Connector
    G06523624Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the input speed sensor (A).
    Fig 2: Identifying Input Speed Sensor
    G06523625Courtesy of KIA MOTORS AMERICA, INC.
