Repair Procedures: Adjustment

Adjusting the shift cable

1. Set the room side lever and the manual lever (A) to N position.
2. Push the shift cable (B) lightly to "F" direction (shown in Fig 1) to eliminate the free play.

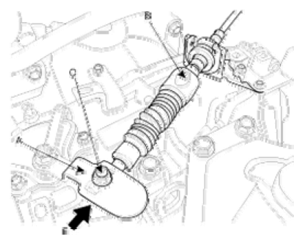

   Fig 1: Adjusting Shift Cable

   Courtesy of KIA MOTORS AMERICA, INC.
3. Tighten the adjusting nut (C).

   Tightening torque:

   10~14 Nm (1.0~1.4kgf.m, 7.2~10.1 lb-ft)

4. Check that this part operates at each range of the manual lever corresponding to each position of the room lever.
