Repair Procedures: Installation

Install the shift cable assembly while the manual lever on the transaxle is placed in the neutral position. (refer to INSTALLATION )
Install the retainer (A) and nuts (B).
Tightening torque:

10~14 Nm (1.0~1.4kgf.m, 7.2~10.1 lb-ft)

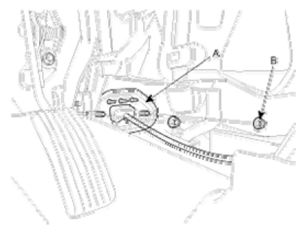

Fig 1: Identifying Retainer & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lever assembly (A).
Tightening torque:

10~14 Nm (1.0~1.4kgf.m, 7.2~10.1 lb-ft)

Fig 2: Installing Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lock cable mounting nut (B).

Fig 3: Identifying Shift Lock Cable & Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lock cable (A).
Install the shift cable holder.
Insert the cotter pin (A) from the shift cable.

Fig 4: Identifying Shift Cable Cotter Pin
Courtesy of KIA MOTORS AMERICA, INC.
Connect the connector (A).

Fig 5: Identifying Center Console Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install the center console. (refer to CONSOLE )
Install the center console cover (A).

Fig 6: Identifying Center Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
