Charging System
CHARGING SYSTEM SPECIFICATIONS
| Items | Specification | |
|---|---|---|
| Alternator | Rate voltage | 13.5 V, 90A |
| Speed in use | 1, 000 ~ 18, 000 RPM | |
| Regulator setting voltage | 14.55 ± 0.2 V | |
| Temperature compensation | -7 ± 3 mV/°C | |

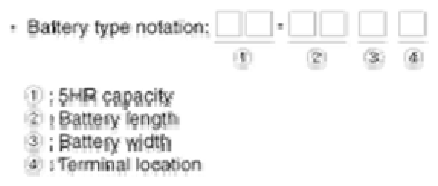

| Battery | Type | 48-23GL |
| Cold cranking amperage (at -18°C (-0.4°F)) | 550 A | |
| Reserve capacity | 92 min | |
| Specific gravity (at 20°C (68°F)) | 1.280 ± 0.01 | |
NOTE:
- COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
- RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C (80.1°F).
