Components And Component Locations: Components

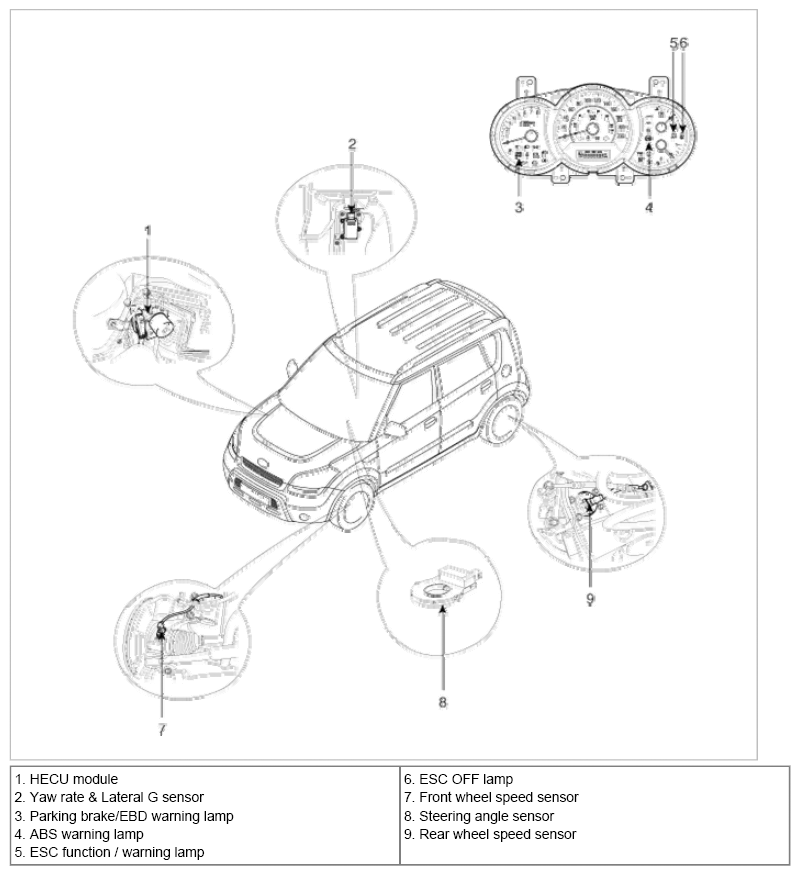

Fig 1: Identifying Electronic Stability Control (ESC) System Components
G06525023Courtesy of KIA MOTORS AMERICA, INC.
