Components And Component Locations: Components

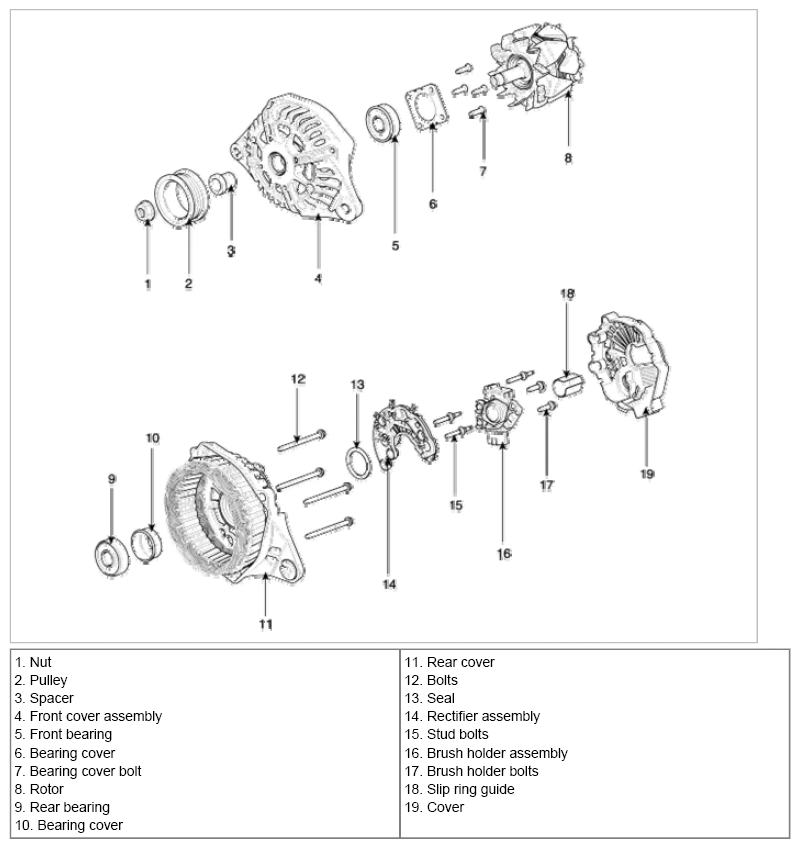

Fig 1: Identifying Alternator Components
G06526053Courtesy of KIA MOTORS AMERICA, INC.
