Components And Component Locations: Components

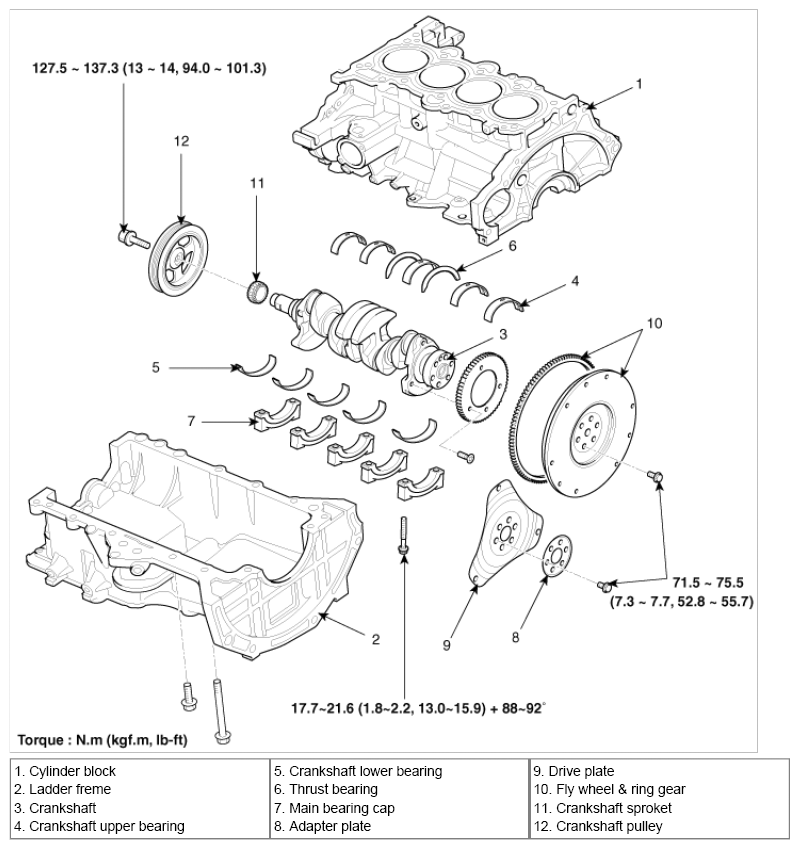

Fig 1: Cylinder Block Replacement Components With Torque Specifications (1 Of 2)
G06525939Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Cylinder Block Replacement Components With Torque Specifications (2 Of 2)
G06525940Courtesy of KIA MOTORS AMERICA, INC.
