Power Circuit Inspection

Check for Open or Short in power circuit
1. IG KEY "OFF".
2. Disconnect HO2S (S2) connector.
3. IG KEY "ON" & ENG "OFF"
4. Measure the voltage between power terminal of HO2S (S2) harness connector and chassis ground.
  Specification: Approx B+

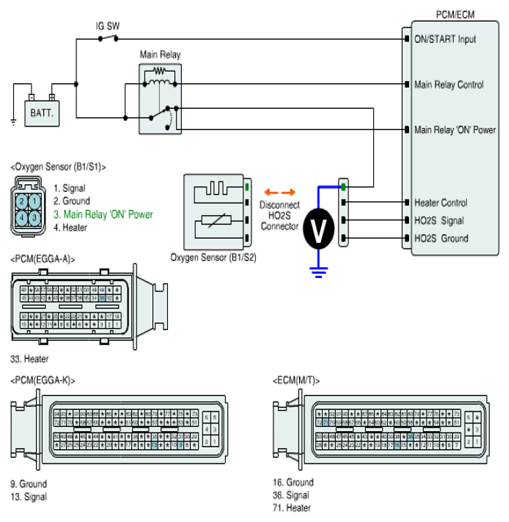

  Fig 1: Measuring Voltage Between Power Terminal Of HO2S (S2) Harness Connector & Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES

  Go to "CONTROL CIRCUIT INSPECTION " procedure.

  NO

  Repair Open or Short circuit, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
