Engine Control System Diagnosis (2 Of 2) - 1.6L
>>
DTC P0463: Fuel Level Sensor A Circuit High Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

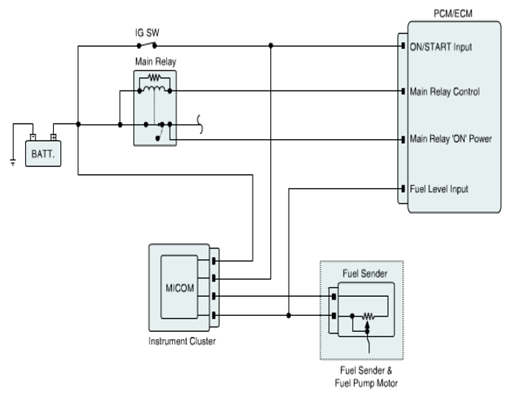

Fig 1: Instrument Cluster & Fuel Sender/Pump Motor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
