Engine Control System Diagnosis (2 Of 2) - 1.6L
>>
DTC P0506: Idle Air Control System-RPM Lower Than Expected
>>
General Information
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

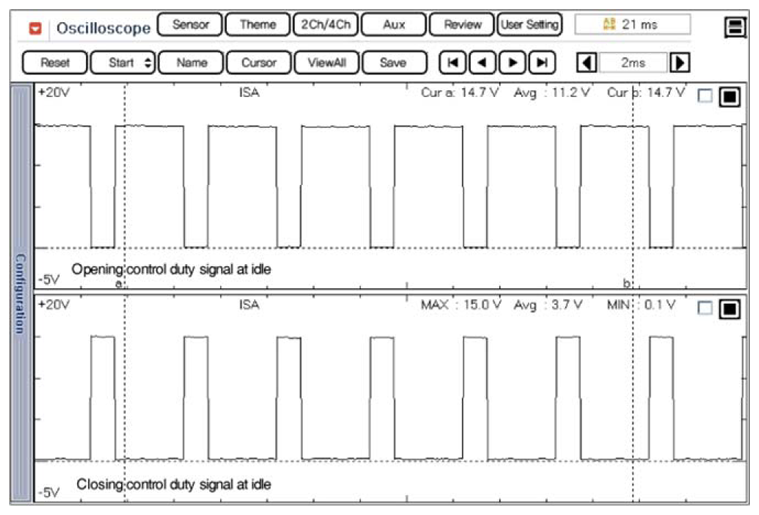

Fig 1: Scantool Display - Signal Waveform Of Idle Speed Control Actuator
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
