Monitor DTC Status
- Connect scantool and select "Diagnostic Trouble Codes (DTCs)" mode.

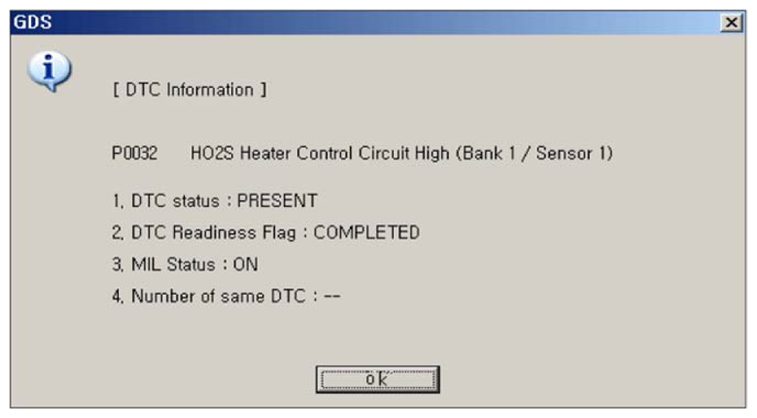

- Click "DTC Status" on the menu bar to see DTC's information.
- Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions (refer to DTC DETECTING CONDITION CHART ).
- Read "DTC Status" parameter.
- Is parameter displayed "History (Not Present) fault"?NOTE:
- History (Not Present) fault: DTC occurred but has been cleared.
- Present fault: DTC is occurring at present time.
YES
Fault is intermittent, caused by poor contact in the sensor's and/or PCM's connector, or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
Go to SYSTEM INSPECTION .
