Component Inspection
- Check A/C relay
- IG "OFF" and disconnect A/C relay.

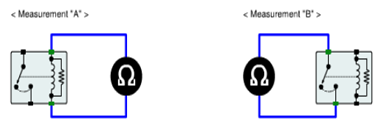

- Measure resistance between battery power supply and power supply to A/C Compressor terminals of A/C relay. (Measurement "A" in Fig 1)
- Measure resistance between battery power supply and A/C relay control terminals of A/C relay. (Measurement "B" in Fig 1)
Specification:
TERMINAL REFERENCETerminal Continuity Battery power supply - Power supply to A/C Compressor NO Battery power supply - A/C relay control YES (Approx. 70Ω ~ 120Ω) - Is the measured resistance within specification?
YES
- Substitute with a known-good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.NOTE: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by ECM. Before or after testing ECM on the vehicle, use this function to reuse the ECM on the others.
NO
- Substitute with a known-good A/C relay and check for proper operation. If the problem is corrected, replace A/C relay and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Substitute with a known-good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
