CAN Communication Circuit Inspection: Notes

Check CAN BUS Short to Ground
1. IG "OFF"
2. Disconnect CAN communication modules. (ECM, ABS (ESP), SRS control module, TRIP computer, Tire pressure monitoring module, Yaw rate sensor)
3. Measure the resistance between CAN-HIGH terminal of DLC harness connector and chassis ground.
4. Measure the resistance between CAN-LOW terminal of DLC harness connector and chassis ground.
  Specification: Discontinuity (Infinite Ω)

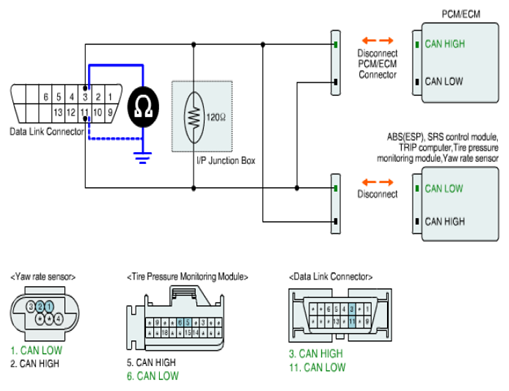

  Fig 1: Measuring Resistance Between CAN-HIGH/LOW Terminals Of DLC Harness Connector & Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.

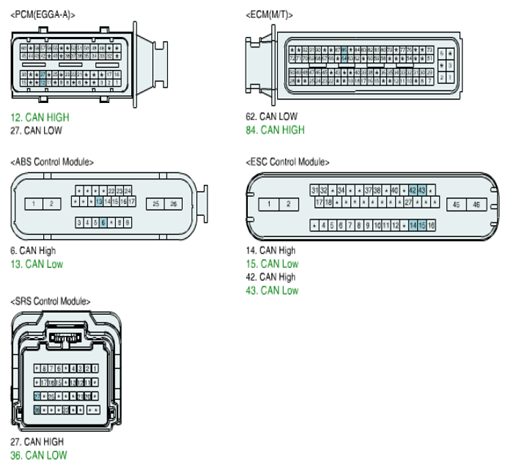

  Fig 2: PCM/ECM & ABS/ESC Connector Terminal Identification
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured resistance within specification?
  YES
  - Go to "CHECK CAN BUS SHORT TO BATTERY ".
  NO
  - Repair short to ground in circuit and go to "VERIFICATION OF VEHICLE REPAIR ".
