Components and Component Locations: Components

WARNING: This page is about a different variant/trim than selected.

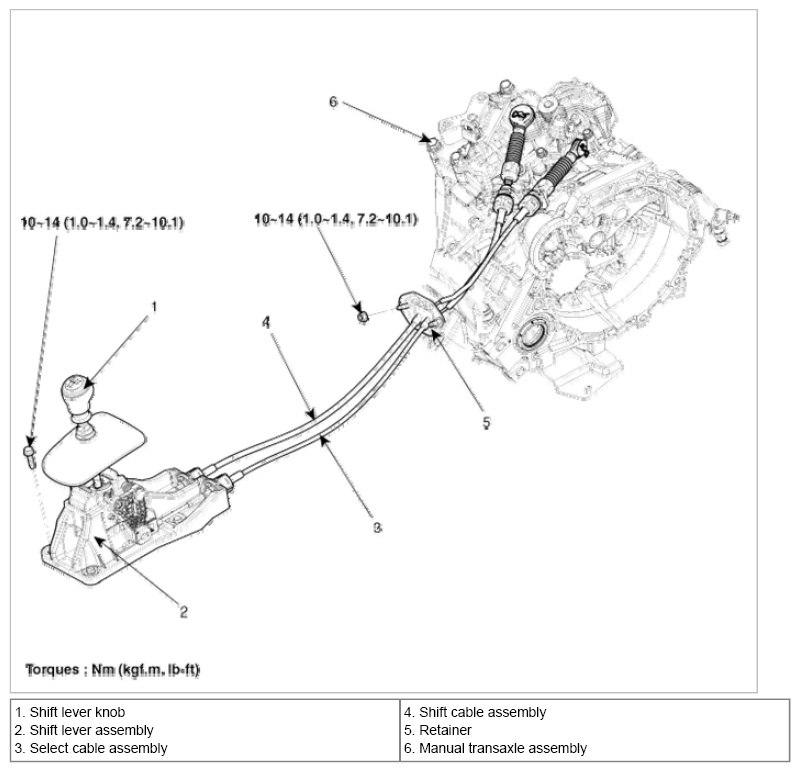

Fig 1: Shift Lever Replacement Components With Torque Specifications
G06524449Courtesy of KIA MOTORS AMERICA, INC.
