Components and Component Locations: Components

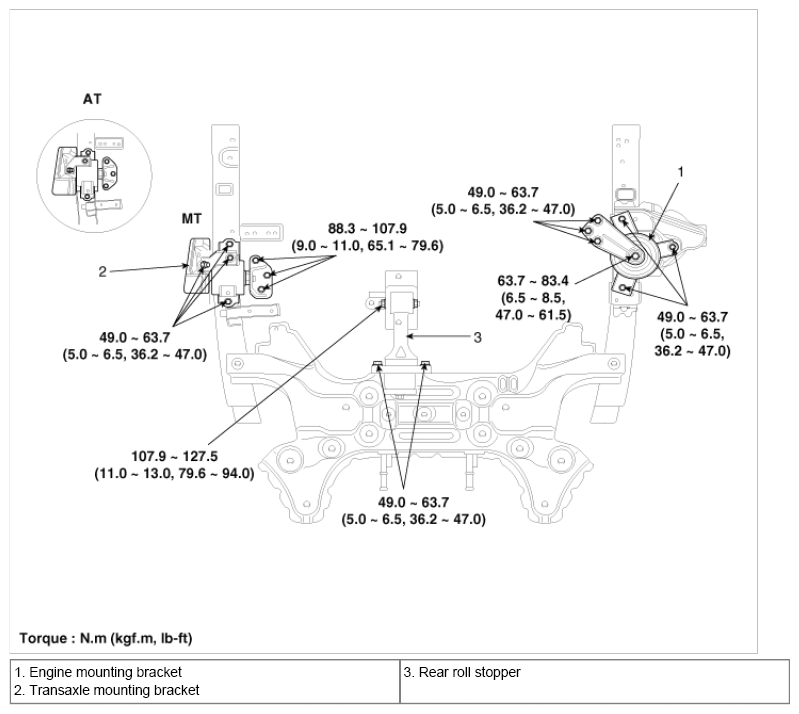

Fig 1: Engine Mounting Replacement Components With Torque Specifications
G06525845Courtesy of KIA MOTORS AMERICA, INC.
