Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
Select the vehicle model and then do "Smart key code saving".

Fig 1: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.

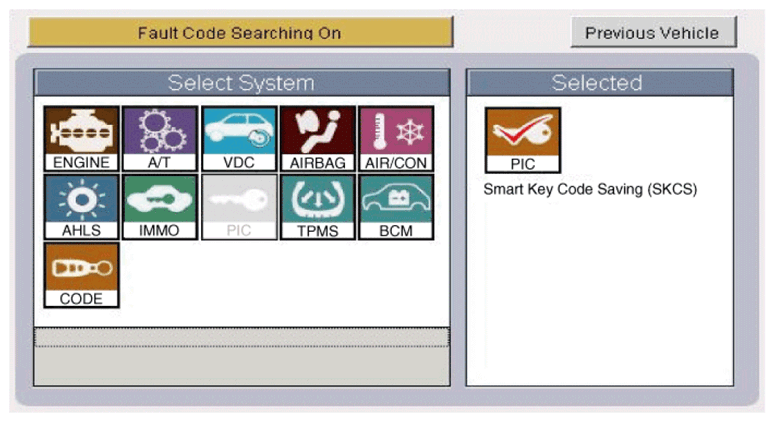

Fig 2: Screen Display - Selecting Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

Fig 3: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

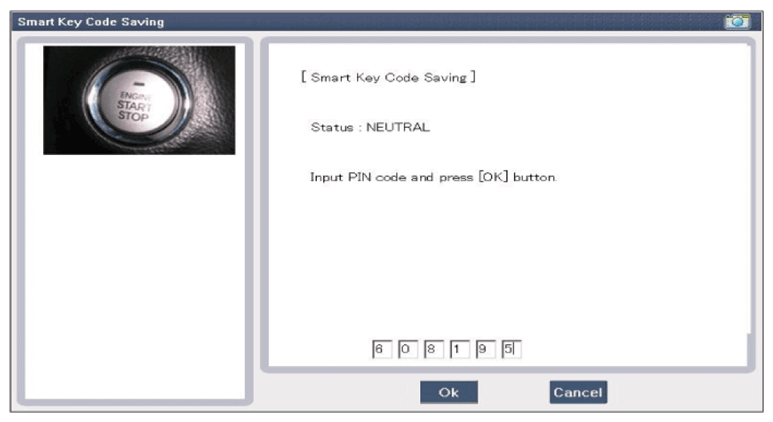

Fig 4: Screen Display - Smart Key Code Saving (Input Pin 608195)
Courtesy of KIA MOTORS AMERICA, INC.

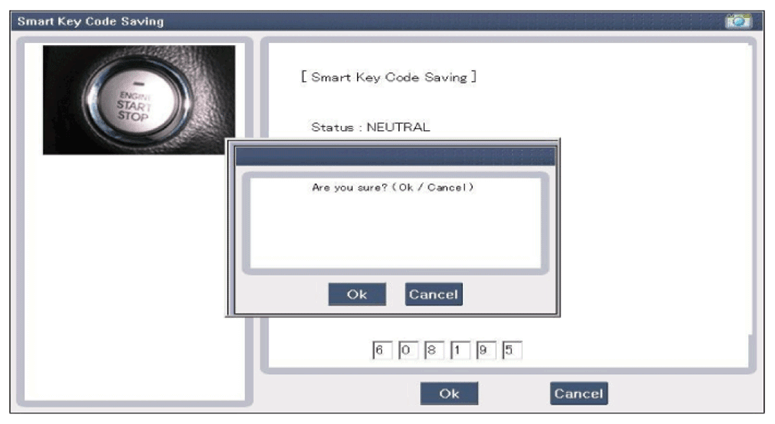

Fig 5: Screen Display - Smart Key Code Saving (Enter)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

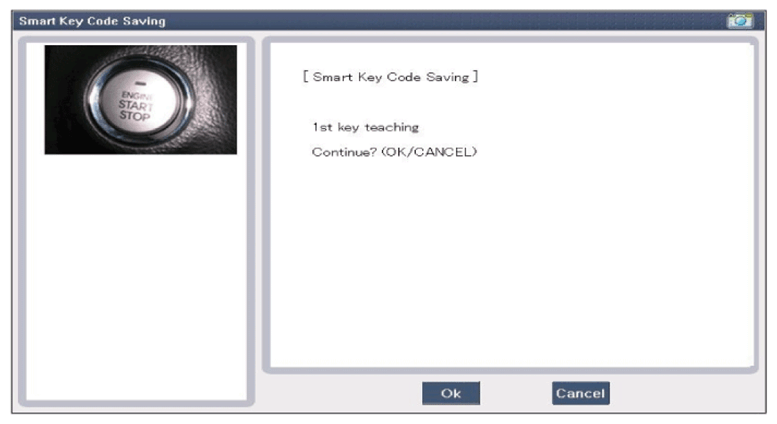

Fig 6: Screen Display - Smart Key Code Saving (First Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.

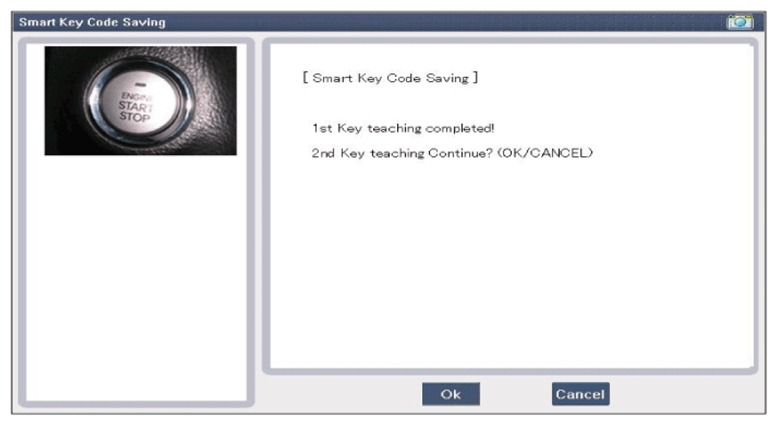

Fig 7: Screen Display - Smart Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Input the "Pin code" for second key teaching.

Fig 8: Screen Display - 2nd Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.

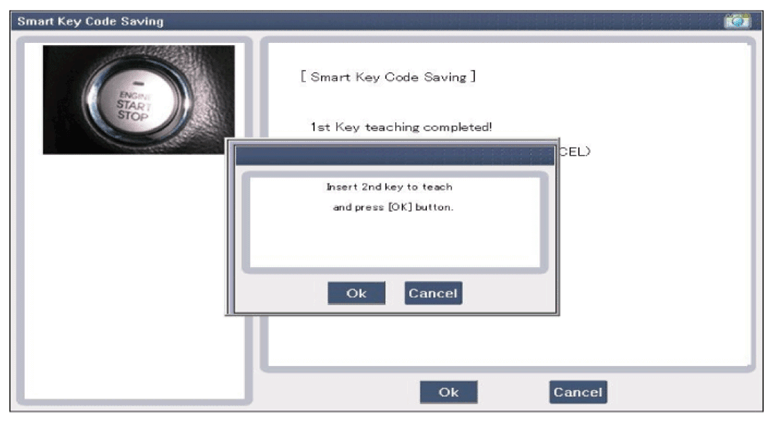

Fig 9: Screen Display - Insert 2nd Key To Teach
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

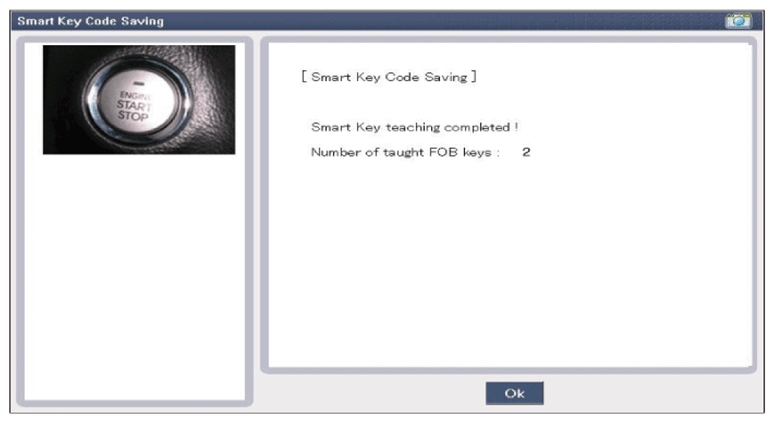

Fig 10: Screen Display - Smart Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when key teaching process is completed.
