Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 3) - SULEV
>>
DTC P0122: Throttle Pedal Position Sensor Switch 'A' Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

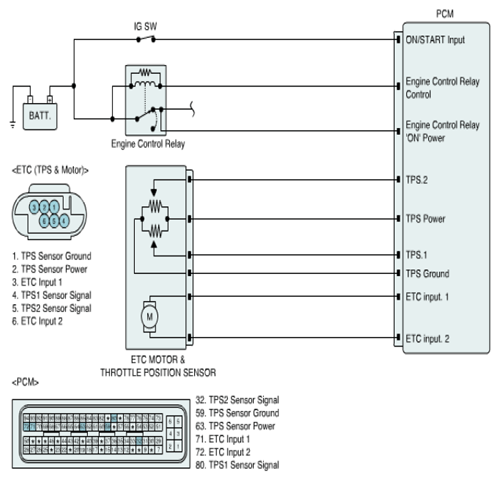

Fig 1: Diagnostic Circuit Diagram Of ETC Motor & TPS
Courtesy of KIA MOTORS AMERICA, INC.
