AVN (A/V & Navigation) Head Unit

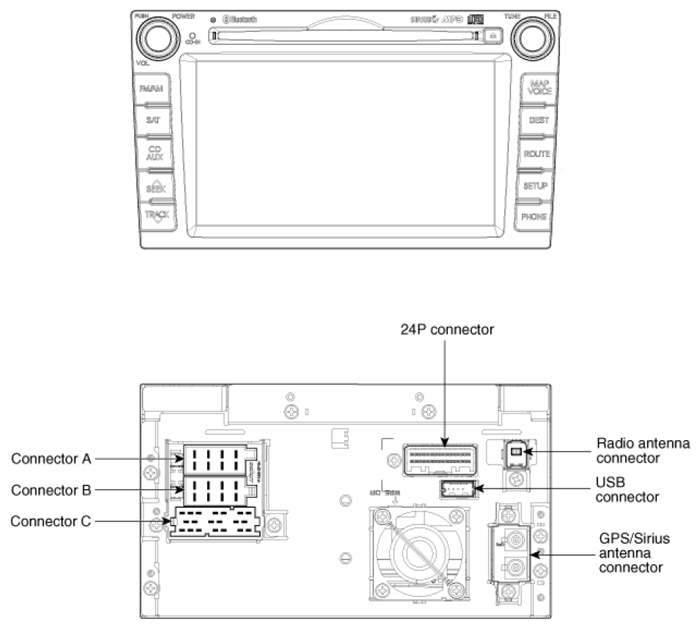

Fig 1: AVN Head Unit & Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

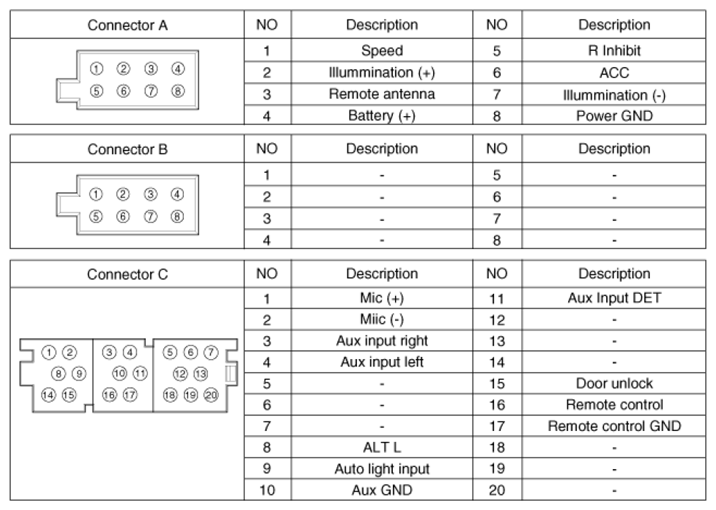

Fig 2: AVN Head Unit Connector Terminal Identification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

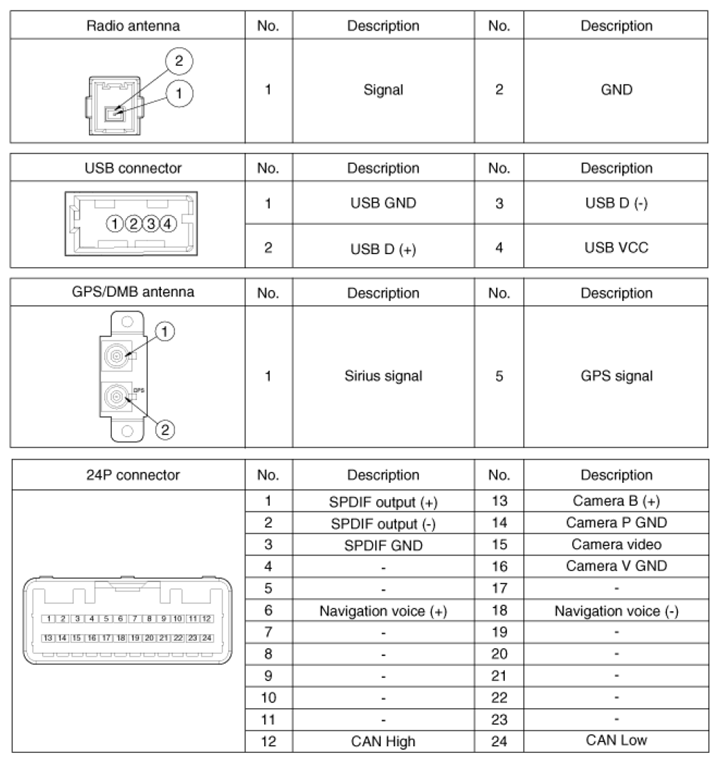

Fig 3: AVN Head Unit Connector Terminal Identification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

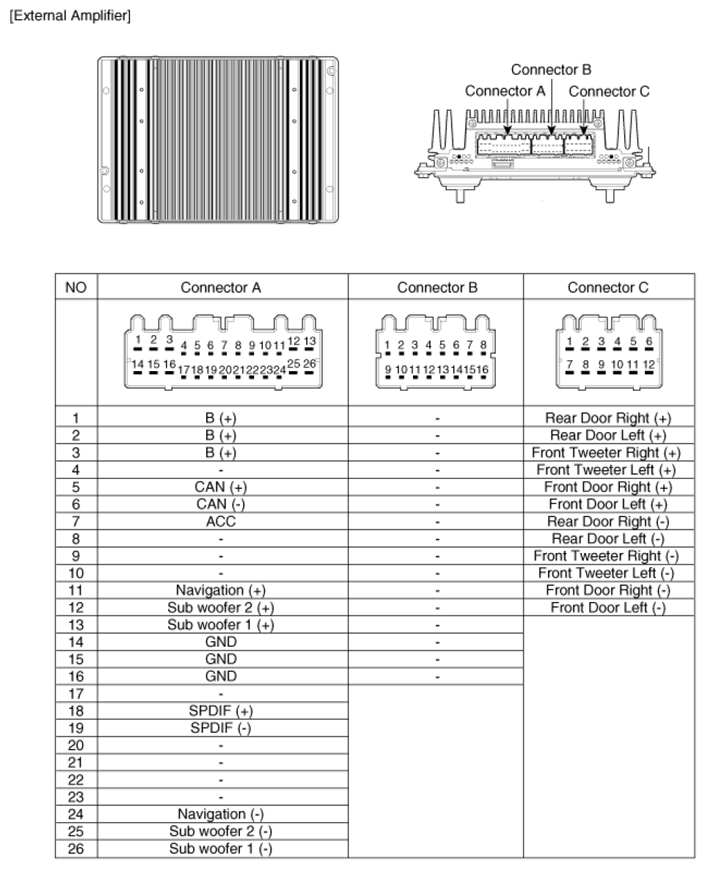

Fig 4: External Amplifier Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

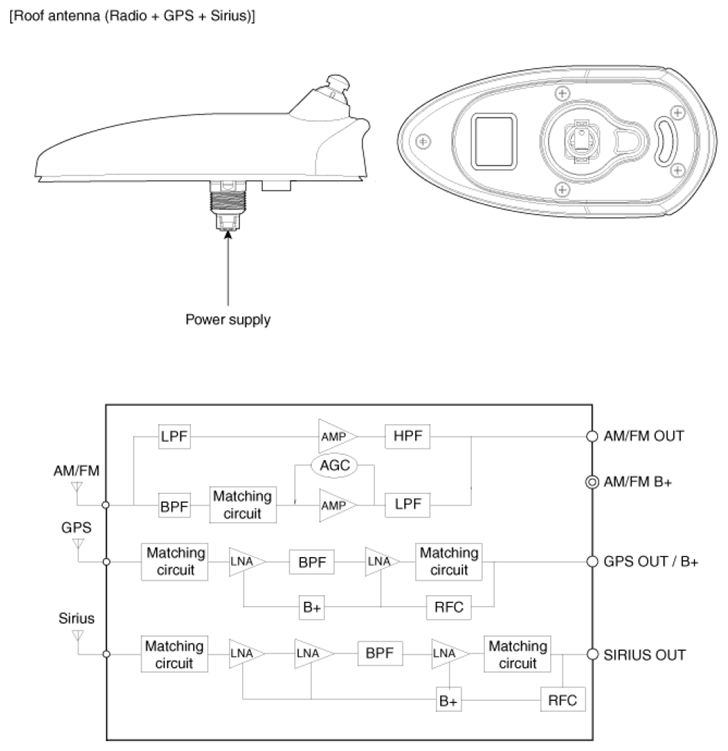

Fig 5: Roof Antenna Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
