Engine Control System Diagnosis (3 Of 3) - SULEV
>>
DTC P2016: Intake Manifold Runner Position Sensor Switch Circuit Low (Bank 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

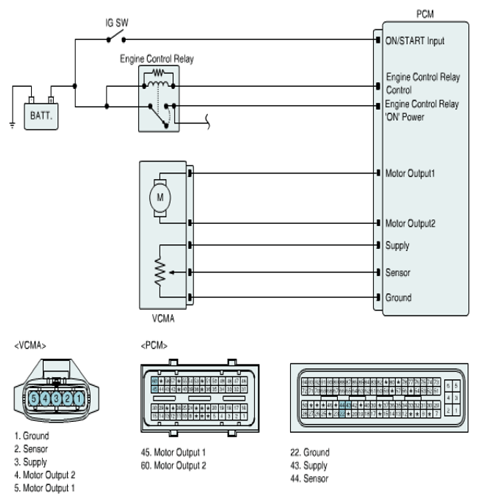

Fig 1: Diagnostic Circuit Diagram Of Variable Charge Motion Actuator (VCMA)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
