Before 4-1-2012

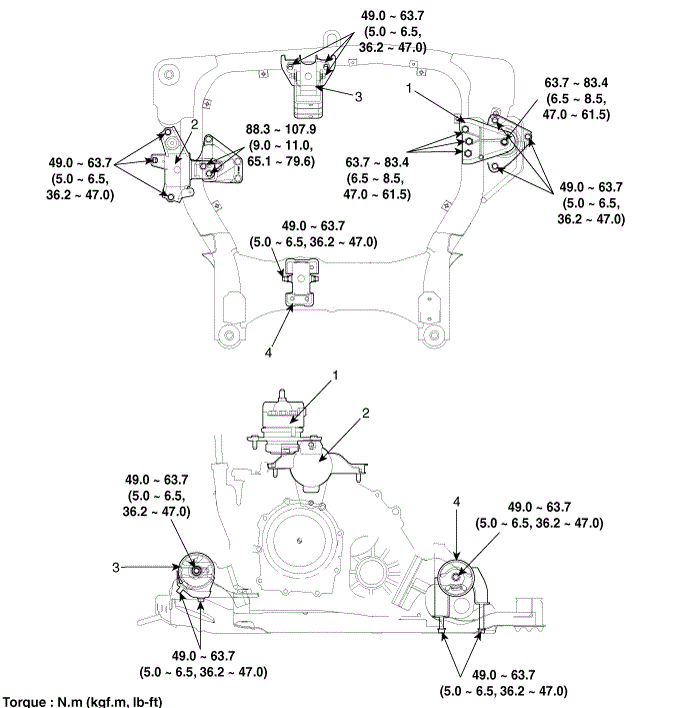

Fig 1: Engine & Transaxle Mounting Brackets, Front & Rear Roll Stopper With Torque Specifications
G00534437Courtesy of KIA MOTORS AMERICA, INC.
  1. Engine mounting bracket
  2. Transaxle mounting bracket
  3. Front roll stopper
  4. Rear roll stopper
