Engine Control System Diagnosis (3 Of 3) - Except SULEV
>>
DTC P2128: Throttle Pedal Position Sensor/Switch 'E' Circuit-High Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

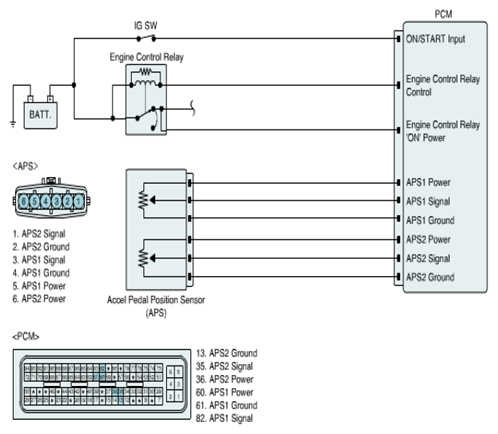

Fig 1: Accel Position Sensor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
