Component and Components Location: Components

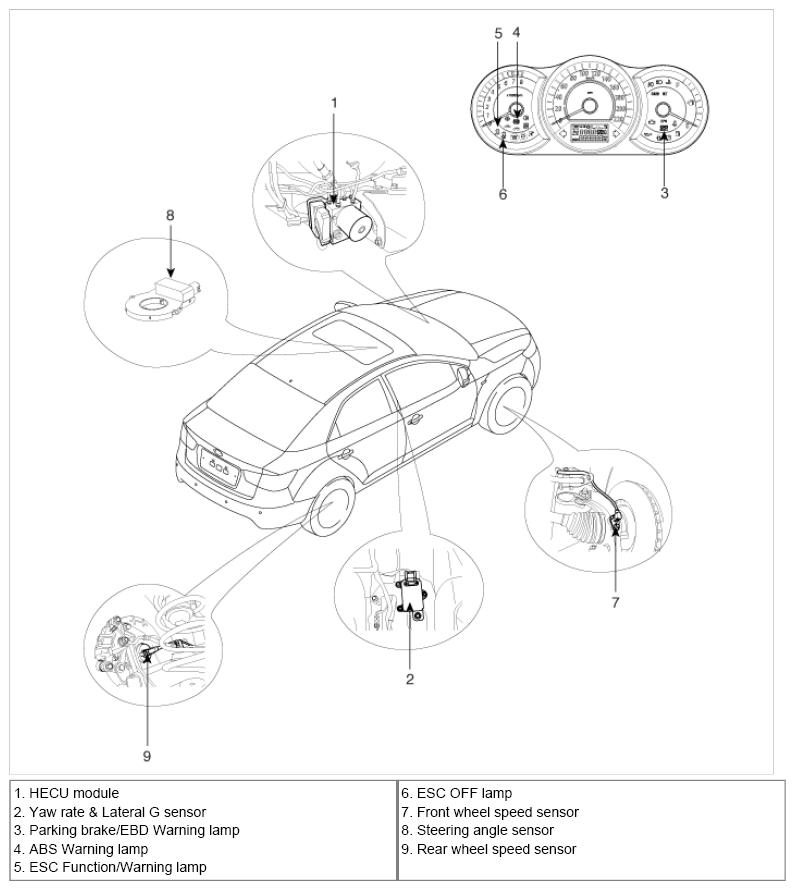

Fig 1: Electronic Stability Control System Components Location
G07368468Courtesy of KIA MOTORS AMERICA, INC.
