Components and Components Location: Components

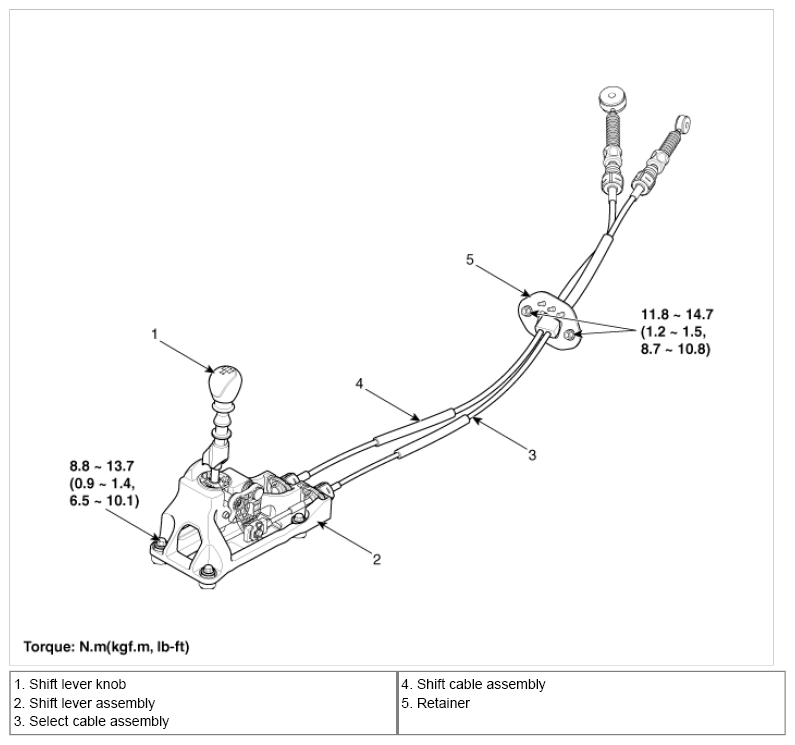

Fig 1: Shift Lever Components With Torque Specifications
G07369727Courtesy of KIA MOTORS AMERICA, INC.
