Engine Control System Diagnosis (2 Of 2) - HEV
>>
DTC P2237: O2 Sensor Pumping Current Circuit Open-Bank 1 Sensor 1
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

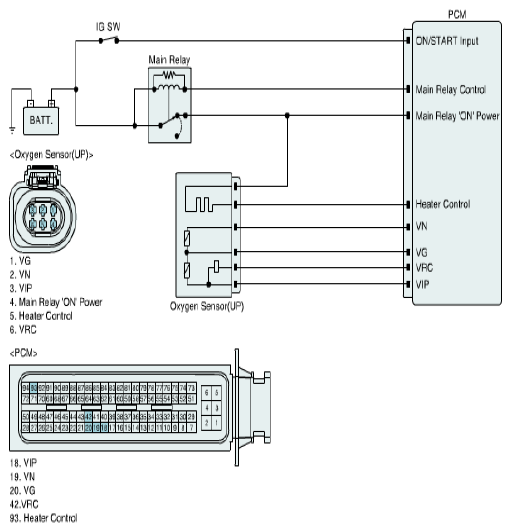

Fig 1: Oxygen Sensor Diagnostic - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
