BMS Control Module Connector End View (F71-V4)

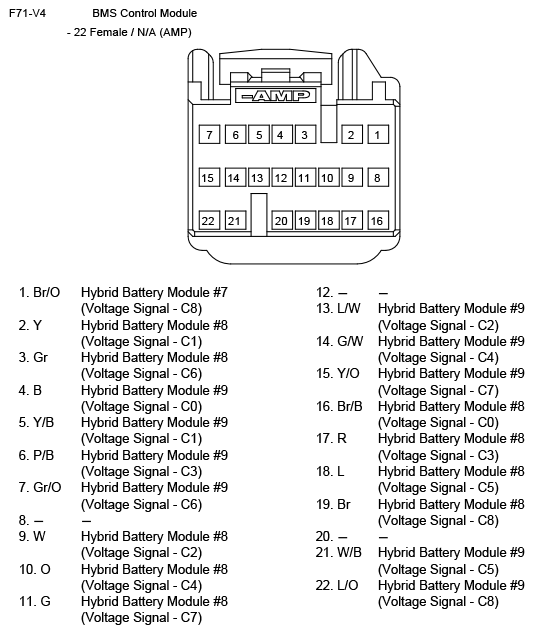

Fig 1: BMS Control Module Connector End View (F71-V4)
G10798087Courtesy of KIA MOTORS AMERICA, INC.
