Circuit Diagram

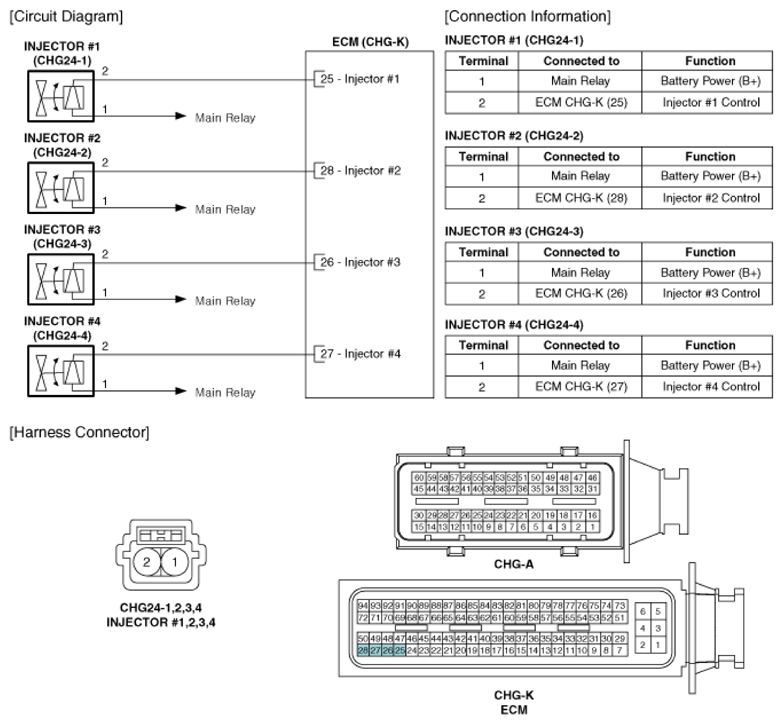

Fig 1: Identifying Injector And ECM (CHG-K) - Circuit Diagram With Connector Terminals End View
G08312874Courtesy of KIA MOTORS AMERICA, INC.
