Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect IAT sensor connector and PCM connector.
  3. Measure the resistance between signal terminal of IATS harness connector and chassis ground.

    Specification  : Infinite

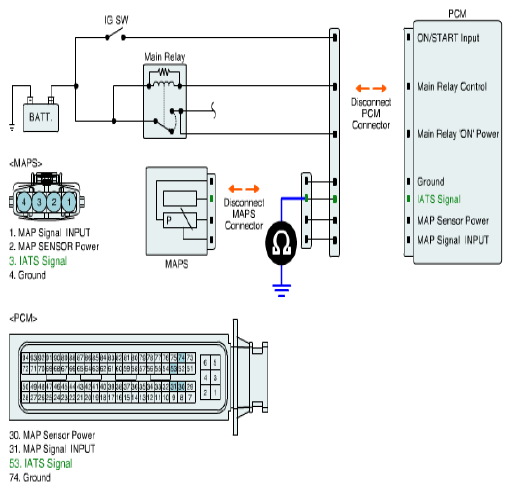

    Fig 1: Measuring Resistance Between IATS Harness Connector Signal Terminal And Chassis Ground
    G08305801Courtesy of KIA MOTORS AMERICA, INC.
  4. Is resistance within the specification?

    YES

    • Go to next step as below.

    NO
