Alarm Module, (Vehicle Antitheft)
S03-A Driver IMS Module:

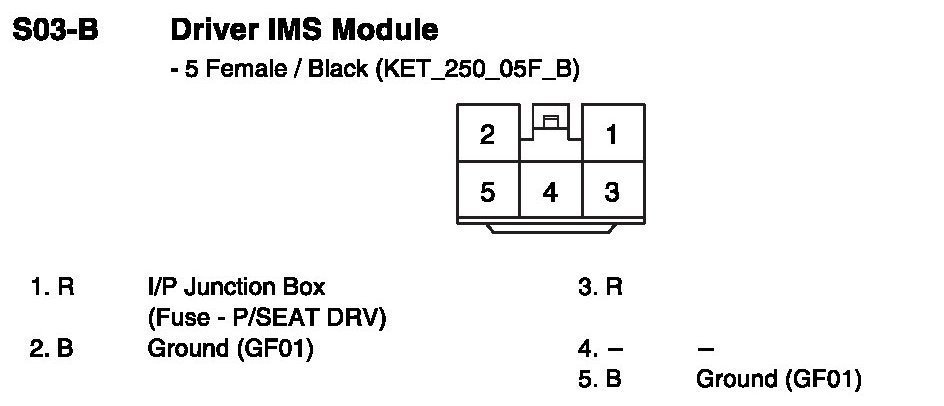

S03-B Driver IMS Module:

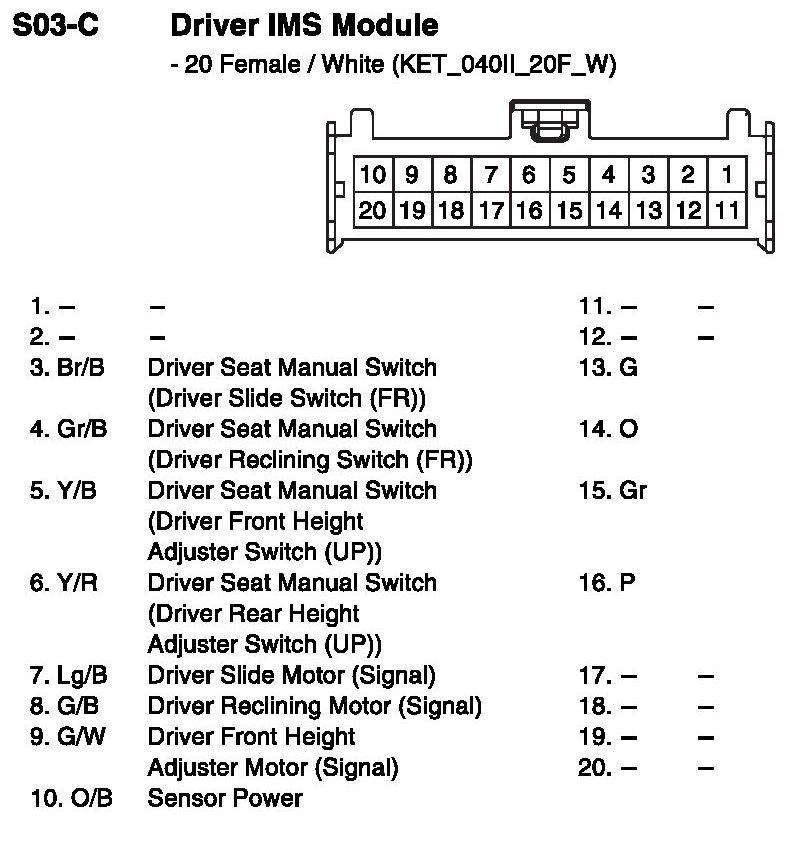

S03-C Driver IMS Module:

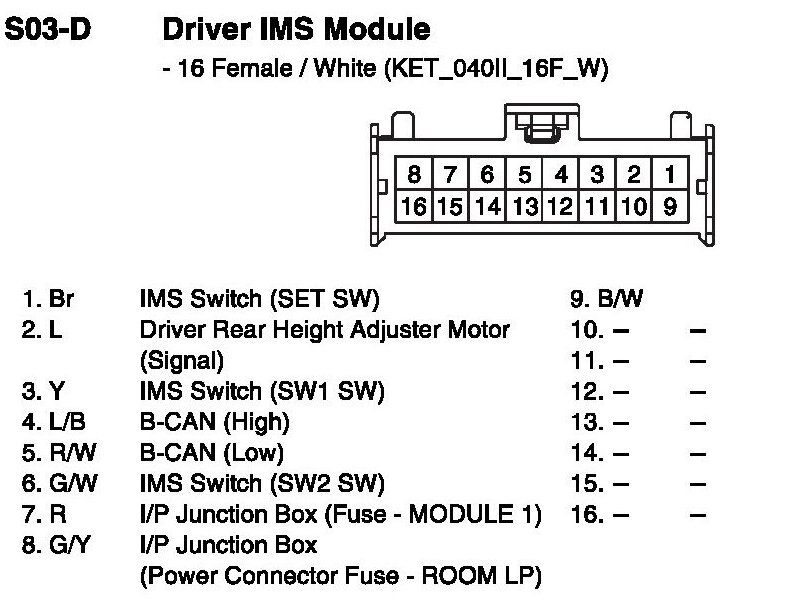

S03-D Driver IMS Module:
