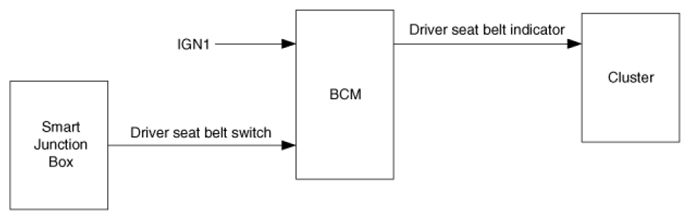

Seat Belt Reminder (Driver Seat)
Courtesy of KIA MOTORS AMERICA, INC.
- From IGN1 switch ON, Warning lamp for 1 sec (DUTY 50%) and Chime buzzer for 6 time every 1 sec. (in case of S/BELT unfastened state) But, within 6 sec in the S/BELT fastened, the Chime buzzer output is stop, and Warning lamp is the remaining time.
- Lamp and Chime buzzer become output stop when IGN1 is turned OFF within 6 sec-output.
- If vehicle speed over 10 Km/h, Warning lamp and Chime buzzer are work for 1 time when Seat belt unfastened after IGN ON.
- If vehicle speed below 5 Km/h or IGN OFF or seat belt fastened, pattern is stop when pattern is running.
- Seat belt fastened→unfastened when IGN1=ON state : if vehicle speed over 10 Km/h, 1 time output. And if vehicle speed 5~10 Km/h, Warning lamp for 1s (DUTY 50%) and Chime buzzer for 6 every 1s. If vehicle speed less than 5 Km/h, Warning lamp for 6 every 1s (DUTY 50%)
