Installation is the reverse of removal.
NOTE: If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (oil seal installer, 09453-3L240).
NOTE:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- Adding automatic transaxle fluid. Refer to "HYDRAULIC SYSTEM (FLUID) ".
- After servicing the automatic transaxle or TCM, clear the diagnostic trouble codes (DTC) using the GDS tool. Diagnostic trouble codes (DTC) cannot be cleared by disconnecting the battery.
- When deleting diagnostic trouble code, use the GDS as possible.
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup. Refer to TCM LEARNING .
NOTE:
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.
  (Condition)
- IG Key On
- Transaxle Range: P
- Vehicle Speed: 0 km/h
- Engine Off

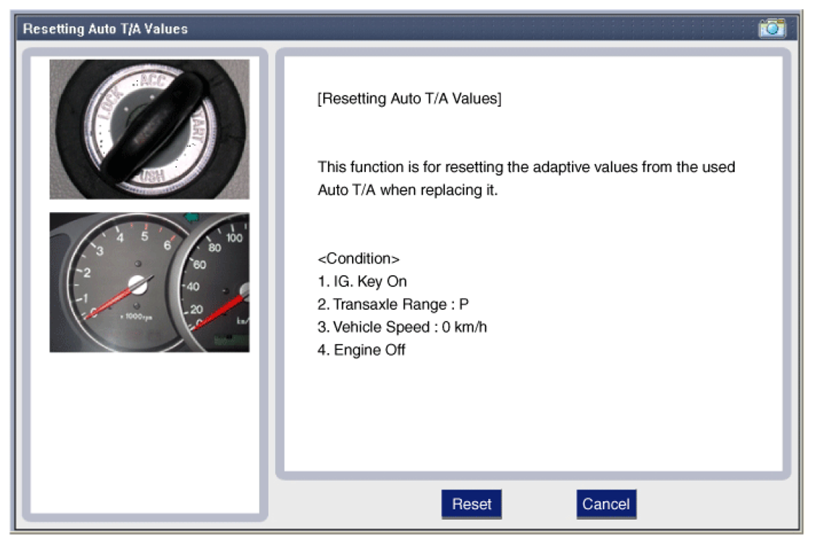

Fig 1: Screen Display Resetting Auto T/A Values
Courtesy of KIA MOTORS AMERICA, INC.

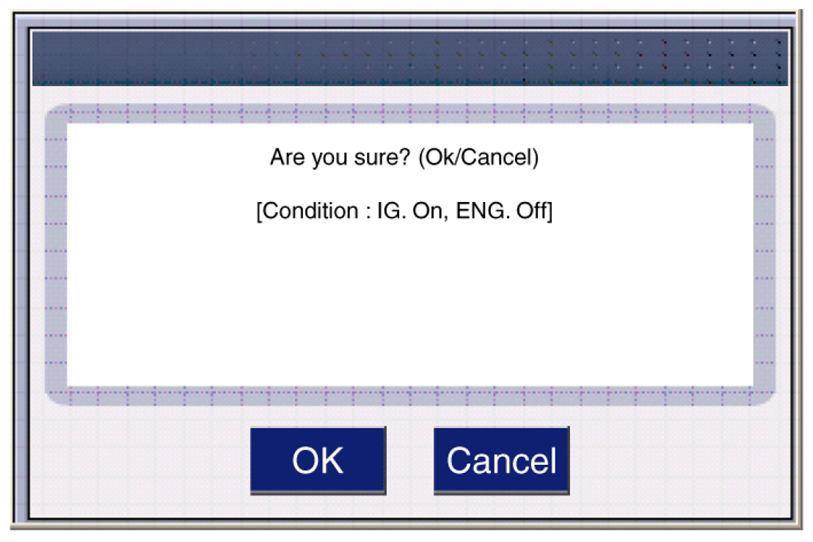

Fig 2: Screen Display Resetting Auto T/A Values Conformation Screen
Courtesy of KIA MOTORS AMERICA, INC.

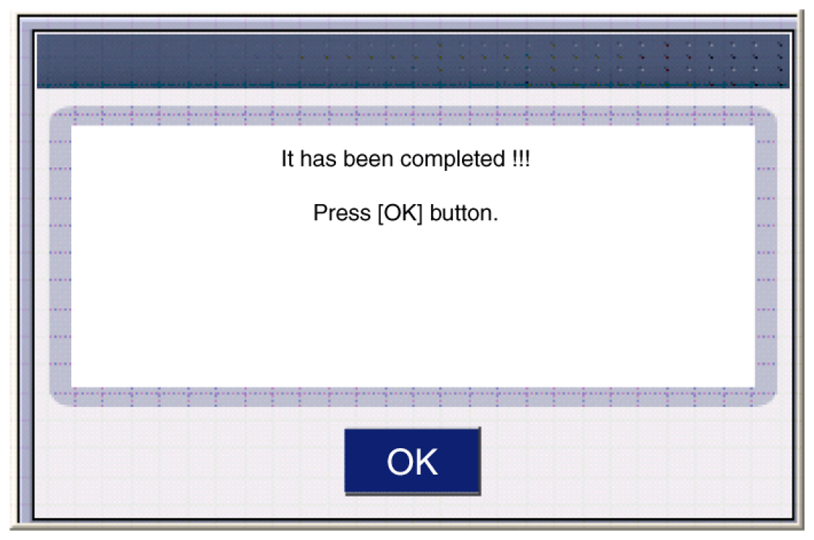

Fig 3: Screen Display Resetting Auto T/A Values Completed Screen
Courtesy of KIA MOTORS AMERICA, INC.
