Accelerator Position Sensor (APS): Specifications: Specification
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
VOLTAGE REFERENCE CHART
Accelerator Position
Output Voltage (V)
APS1
APS2
C.T
0.7 ~ 0.8
0.29 ~ 0.46
W.O.T
3.85 ~ 4.35
1.93 ~ 2.18

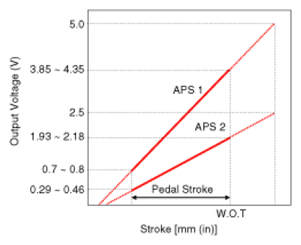

Fig 1: Accelerator Position Sensor Output Voltage Graph
