EWGA Position Sensor

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

EWGA POSITION SENSOR REFERENCE CHART

Position	Output Voltage (V)	Operating Angle (°)	Range of Rod (mm), reference
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	4.2	12	1.8
Electrical Open end stop Position (EOP)	1	79	16
Mechanical Open end stop Position (MOP)	0.5	90	18

Fig 1: Identifying EWGA Position Sensor

Courtesy of KIA MOTORS AMERICA, INC.

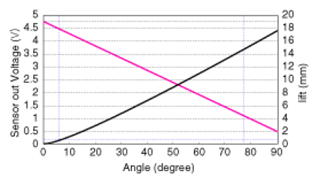

Fig 2: EWGA Position Sensor Graph

Courtesy of KIA MOTORS AMERICA, INC.
