Turn ignition switch OFF and disconnect the negative (-) battery cable.

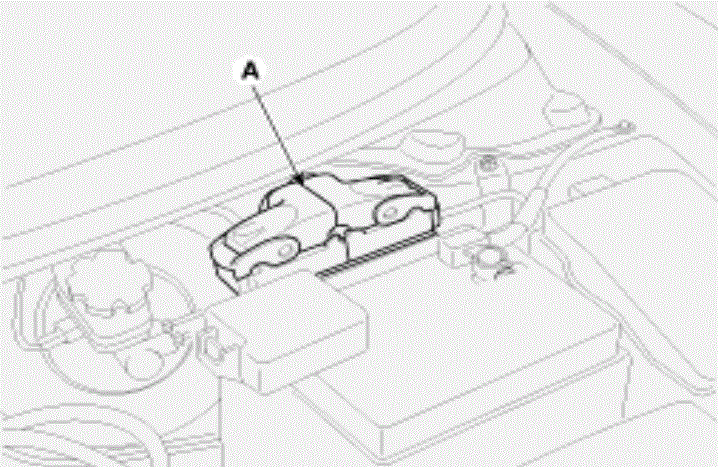

Disconnect the ECM Connector (A).

Fig 1: ECM Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the battery (Refer to "INTAKE & EXHAUST SYSTEM - 2.0L ").

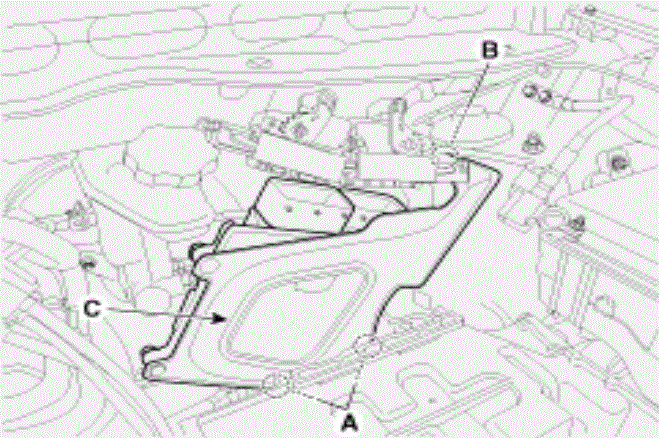

Remove the mounting bolts (A) and nut (B), and then remove the ECM assembly (C).

Fig 2: Mounting Bolts & Nuts
Courtesy of KIA MOTORS AMERICA, INC.

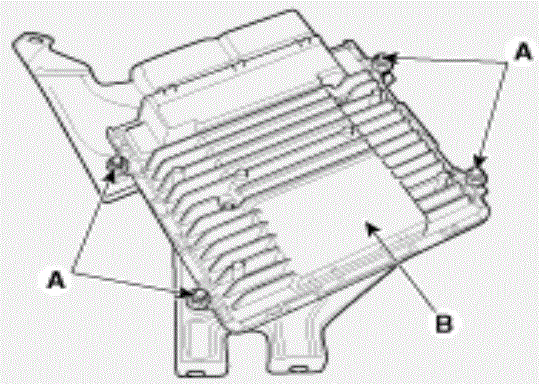

Remove the installation nuts (A), and then remove the ECM (B) from the bracket.

Fig 3: ECM & Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
