Scantool Data Analysis

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "DTC Analysis" mode.
After erase DTC.

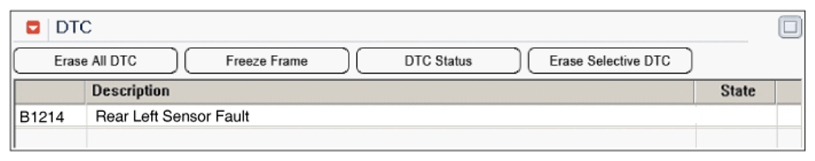

Fig 1: Scantool Display - DTC B1214
Courtesy of KIA MOTORS AMERICA, INC.
Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or BCM (RPAS (Rear Parking Assist Modules)) connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
