Section 69 (Smart Key Code Saving (Button) Diagnosis)
>>
DTC P1695: Immobilizer-EMS Memory Error
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram
WARNING:
This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

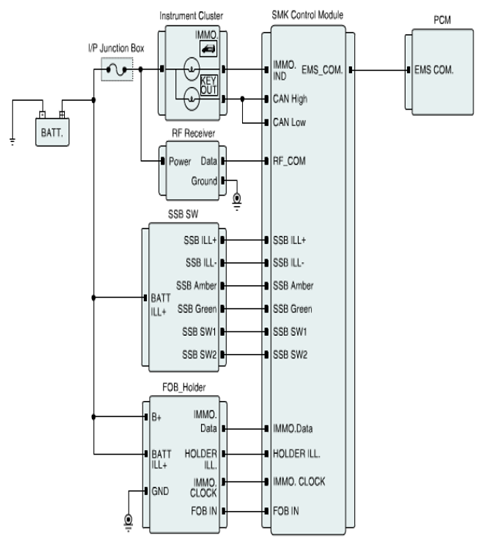

Fig 1: SMK Control Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

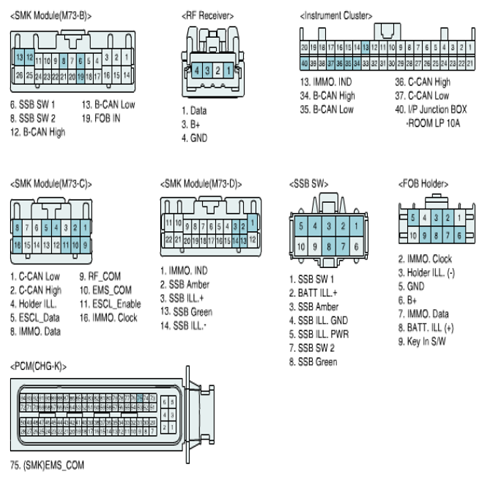

Fig 2: SMK Control Module Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
