Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

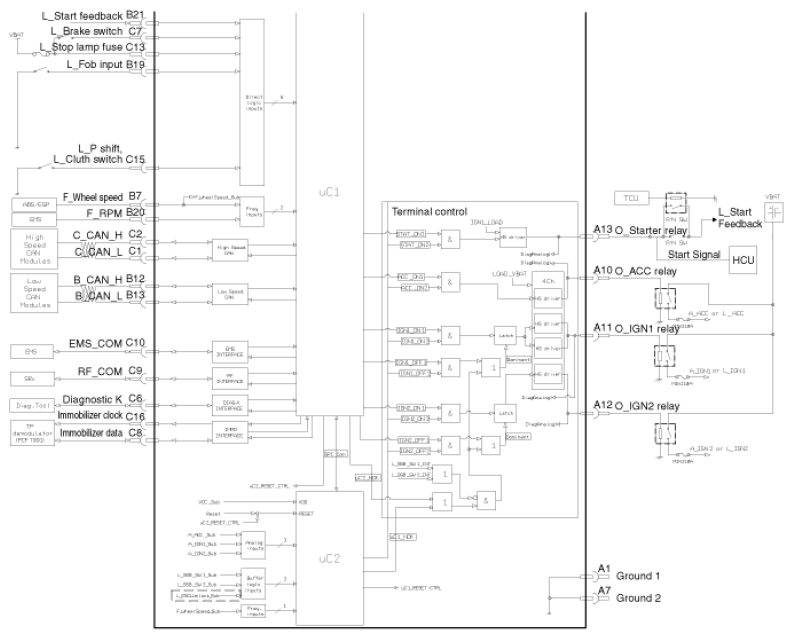

Fig 1: RF Receiver Unit - Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

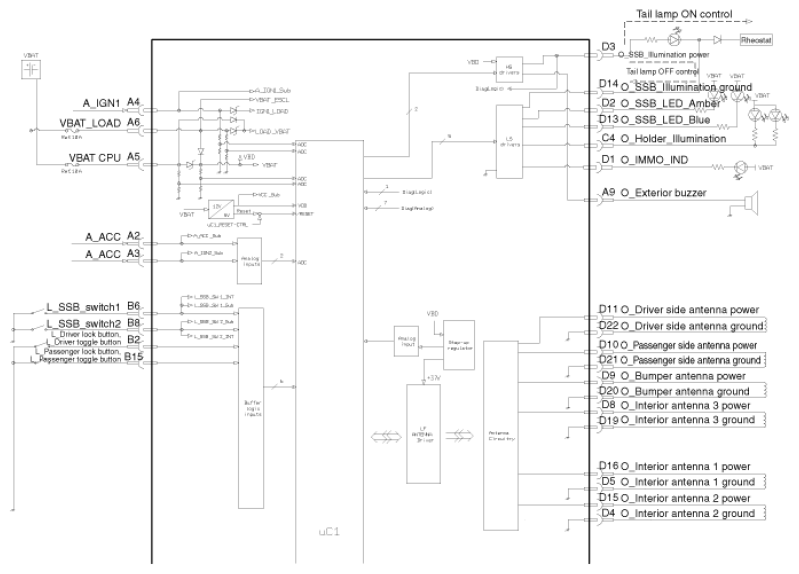

Fig 2: RF Receiver Unit - Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
