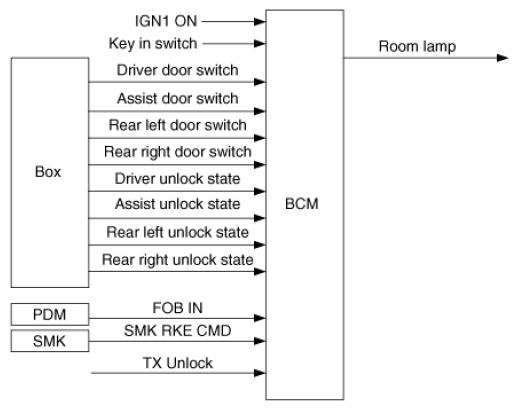

Delay Out Interior Lamp
WARNING: This page is about a different variant/trim than selected.
- IGN1 off the door (Trunk excluded) will be lit to open the room lamp.
- Room lamp 4 Door closes, a 30-second delay will be lights out.
- 4 Door in closed IGN1 off & (Key in → Key out): 30-second delay will be lights out.
Courtesy of KIA MOTORS AMERICA, INC.
TX UNLOCK: Include Keyless or SMK by UNLOCK.
IGN KEY IN->OUT
: IGN KEY OFF -> ON or ACC OFF-> ON or IGN1 OFF-> ON or IGN2 OFF->ON(Keyless)
: FOB IN OFF-> ON or ACC OFF -> ON or IGN1 OFF-> ON or IGN2 OFF-> ON(SMK)
