Passive Key Reminder Unlock (SMK)
WARNING: This page is about a different variant/trim than selected.
- This function is not performed when vehicle speed is 3km/h or more.
- When the driver door switch (Assist door switch) = OPEN and driver unlock state (Assist unlock state) are lock state, passive KEY REMINDER signal received at the output ALL DOOR UNLOCK is for 1s.
- UNLOCK signal is output 3 times as Max (1s-output is excluded) in case LOCK state is held even when UNLOCK signal is output for 1s in (2). (1s cycle: 0.5s ON/OFF)
Courtesy of KIA MOTORS AMERICA, INC.

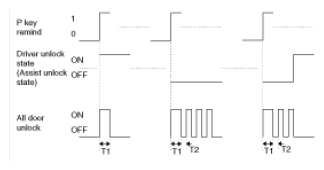

T1: 1 ± 0.1sec, T2: 0.5 ± 1sec
