SSB Switch Warning (SMK)

WARNING: This page is about a different variant/trim than selected.

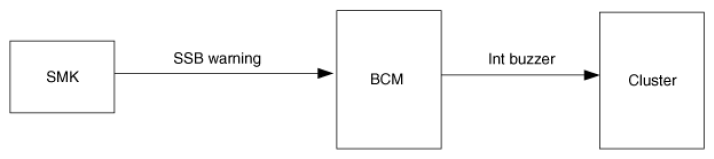

Fig 1: SSB Switch Warning Communication Diagram (SMK)

Courtesy of KIA MOTORS AMERICA, INC.

WARNING BUZZER outputs for the time of reception about SSB Warning(CAN) ON.

WARNING BUZZER OUTPUT STOPs when receiving OFF.

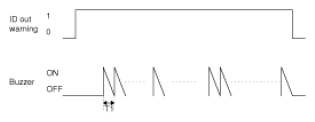

Fig 2: ID Out Warning And Buzzer Blinking Pattern

Courtesy of KIA MOTORS AMERICA, INC.

T1: 0.6 ± 0.1sec
