Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

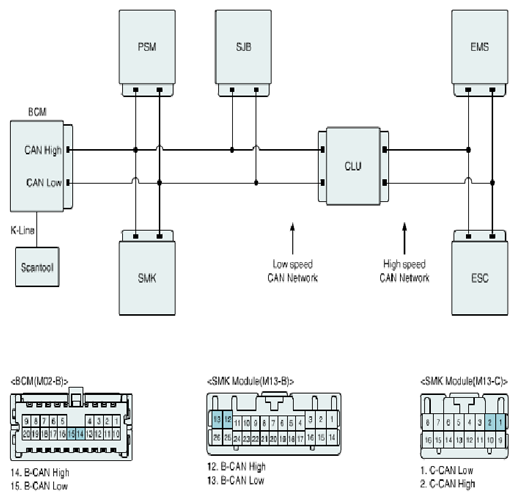

Fig 1: Body Control Module And Smart Junction Box - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

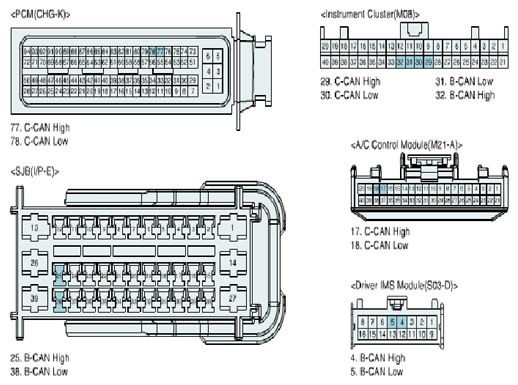

Fig 2: Identifying Smart Junction Box Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
