Delay Out Interior Lamp

• IGN1 off the door (Trunk excluded) will be lit to open the room lamp.
• Room lamp 4 Door closes, a 30-second delay will be lights out.

• 4 Door in closed IGN1 off & (Key in → Key out): 30-second delay will be lights out.

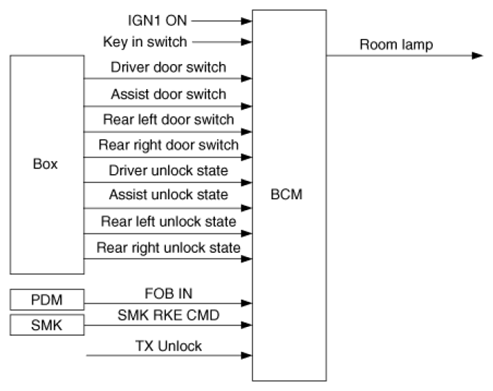

Fig 1: Delay Out Interior Lamp Function Chart

Courtesy of KIA MOTORS AMERICA, INC.

*TX UNLOCK : Include Keyless or SMK by UNLOCK.

*IGN KEY IN->OUT

: IGN KEY OFF -> ON or ACC OFF-> ON or IGN1 OFF-> ON or IGN2 OFF->ON (Keyless)

: FOB IN OFF-> ON or ACC OFF -> ON or IGN1 OFF-> ON or IGN2 OFF-> ON (SMK)
