Vehicle Not P Warning (SMK)

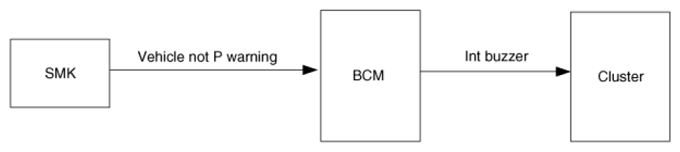

Fig 1: Vehicle Not P Warning (SMK) Function Chart
G07380729Courtesy of KIA MOTORS AMERICA, INC.

While attempting to put a alarm into effect, it'll be canceled immediately due to not receiving P Warning (CAN) ON signal.

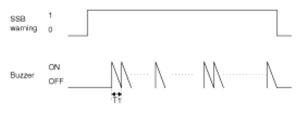

Fig 2: Vehicle Not P Timing Pattern Graph
G07380730Courtesy of KIA MOTORS AMERICA, INC.

T1 : 0.6 ± 0.1 sec
