Components And Components Location: Components

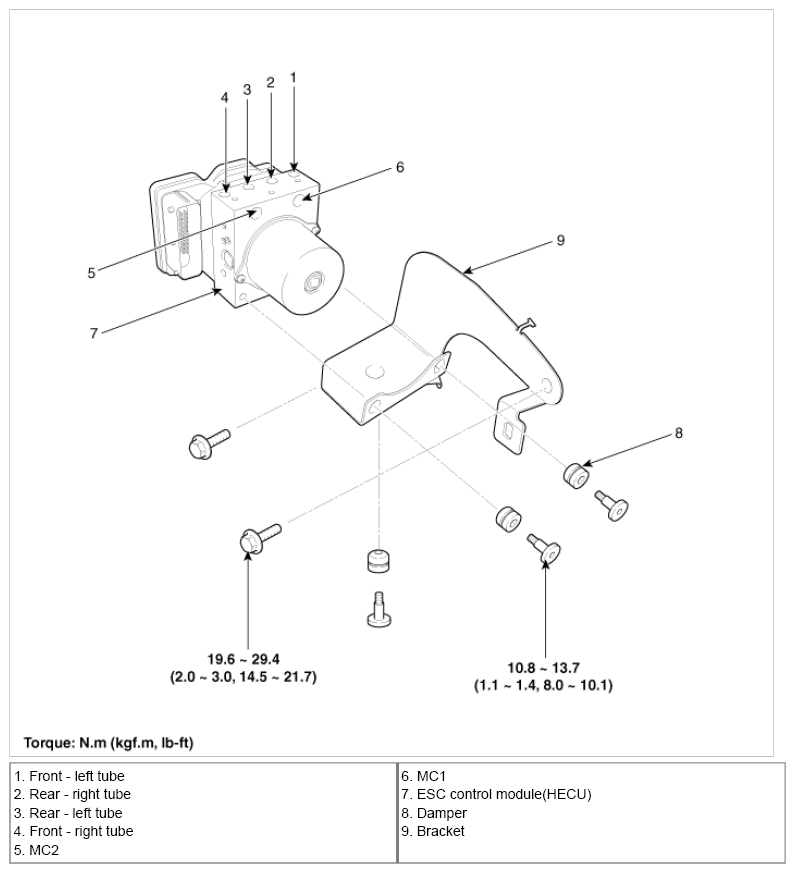

Fig 1: ESC Control Module Components With Torque Specifications
G07383629Courtesy of KIA MOTORS AMERICA, INC.
