Engine Control System Diagnosis (1 Of 3) - 2.4L - Except HEV
>>
DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

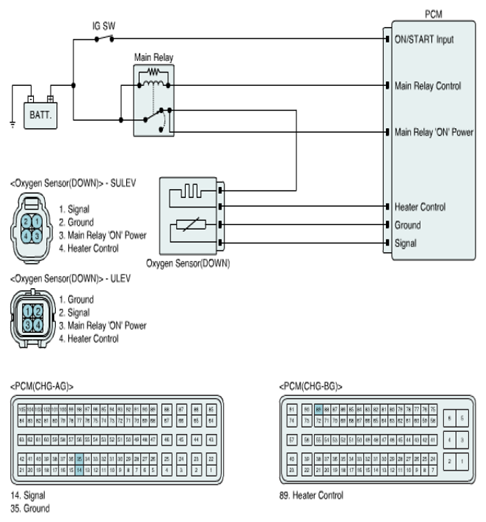

Fig 1: Diagnostic Circuit Diagram Of Oxygen Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
